Advanced RNLED/M3/P Round-LED IP65 Luminaire, Surface Mount, Maintained, Addressable - 0.33M Diameter
SKU: RNLED/M3/PBrand: Advanced
| Out of stock | Qty | Delivery |
|---|---|---|
| All locations | 0 | Lead time 2 to 6 weeks, estimate only |
Need help choosing?
Our UK team can check compatibility, stock and project pricing for you.
0113 518 0540info@jemsystems.co.uk
Advanced RNLED/M3/P Round-LED IP65 Luminaire, Surface Mount, Maintained, Addressable - 0.33M Diameter
£298.70
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- IP65 sealed, for interior and external use
- 3-hour maintained emergency operation
- Addressable: fully LuxIntelligent compatible
- Long-life LEDs (50,000 hours)
- Lockable diffuser release for tamper resistance
- Fully complies with EN 60598-2-22
Frequently bought together
Advanced
Advanced Smart Watch Module
Sale price£1,114.90
Out of stock. Lead time 2 to 6 weeks, estimate only
Advanced
Advanced SP-8629-08 EvacGo 1-4 Loop Controller c/w 1 Loop Card
Sale price£3,439.90
Out of stock. Lead time 2 to 6 weeks, estimate onlyProduct details

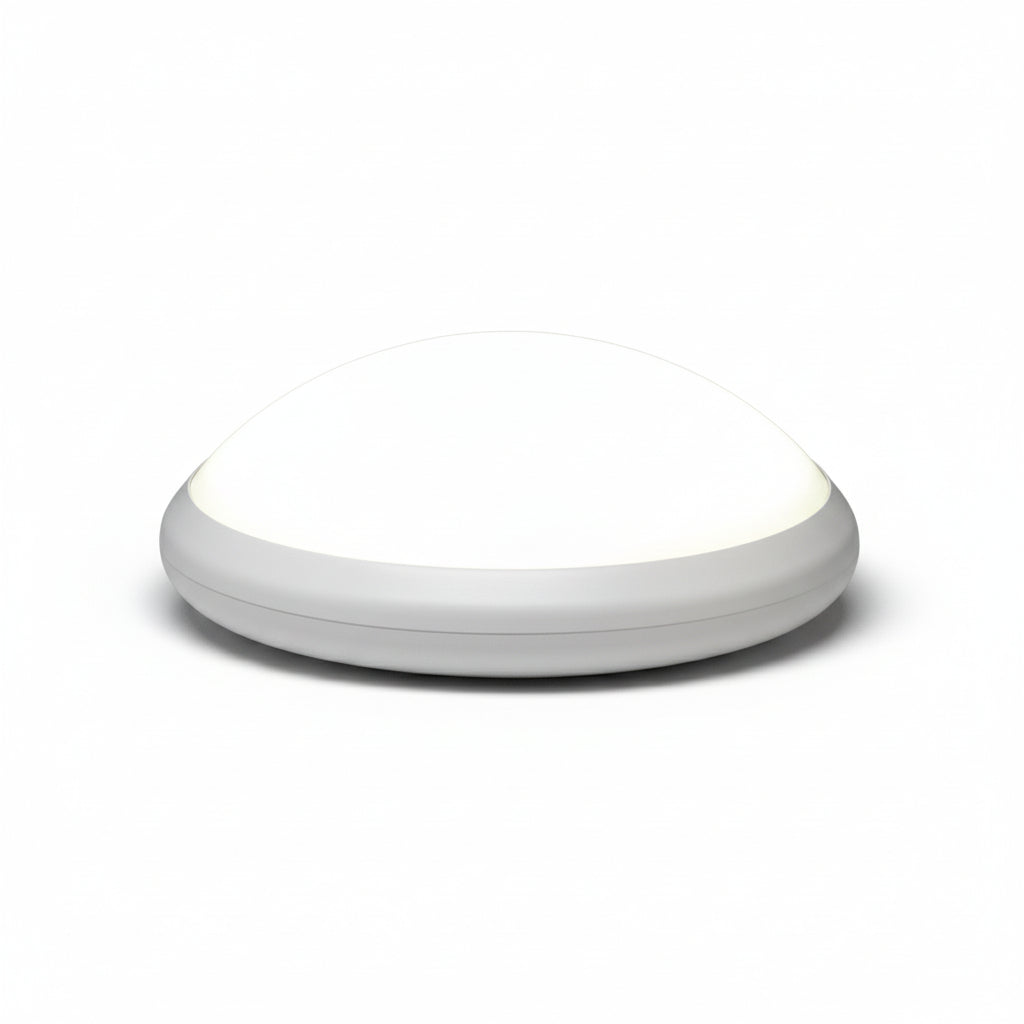

The Advanced RNLED/M3/P is a Round-LED IP65 surface-mounted luminaire, 0.33m in diameter, providing both mains and emergency lighting from one fitting. It is the 3-hour maintained, addressable version and supports all the features of the LuxIntelligent emergency lighting test panels.
It has a white polycarbonate base and opal polycarbonate diffuser sealed to IP65, so it suits both interior and external applications. A lever releases the diffuser, which can be secured with the supplied locking screw for extra tamper resistance. Inside, a removable steel gear tray carries 54 high-output long-life white LEDs. Advanced states that it meets current Part L energy targets, with over 60 lumens per watt.
Key features
- IP65 sealed, for interior and external use
- 3-hour maintained emergency operation
- Addressable: fully LuxIntelligent compatible
- Long-life LEDs (50,000 hours)
- Lockable diffuser release for tamper resistance
- Fully complies with EN 60598-2-22
Technical specifications
- Part code: RNLED/M3/P
- Light source: 54 white LEDs
- Light output: 1410lm (mains), 350lm (emergency)
- Colour temperature: 4500K
- Construction: White polycarbonate base, opal polycarbonate diffuser
- Gear tray: White painted steel, fixed with 3 screws
- Dimensions: 330mm diameter x 126mm high
- Cable entry: 20mm drilling points
- IP rating: IP65
- Ambient temperature: 25°C
- Insulation class: Class II
- Supply voltage: 230V ~50Hz
- Supply power: 13W (mains), 17W (emergency)
- Battery: 1 x 6.0V 2.0Ah
- Emergency duration: 3 hours
- Weight: 3.4kg (emergency version)
What's in the box
- Locking screw for the diffuser
