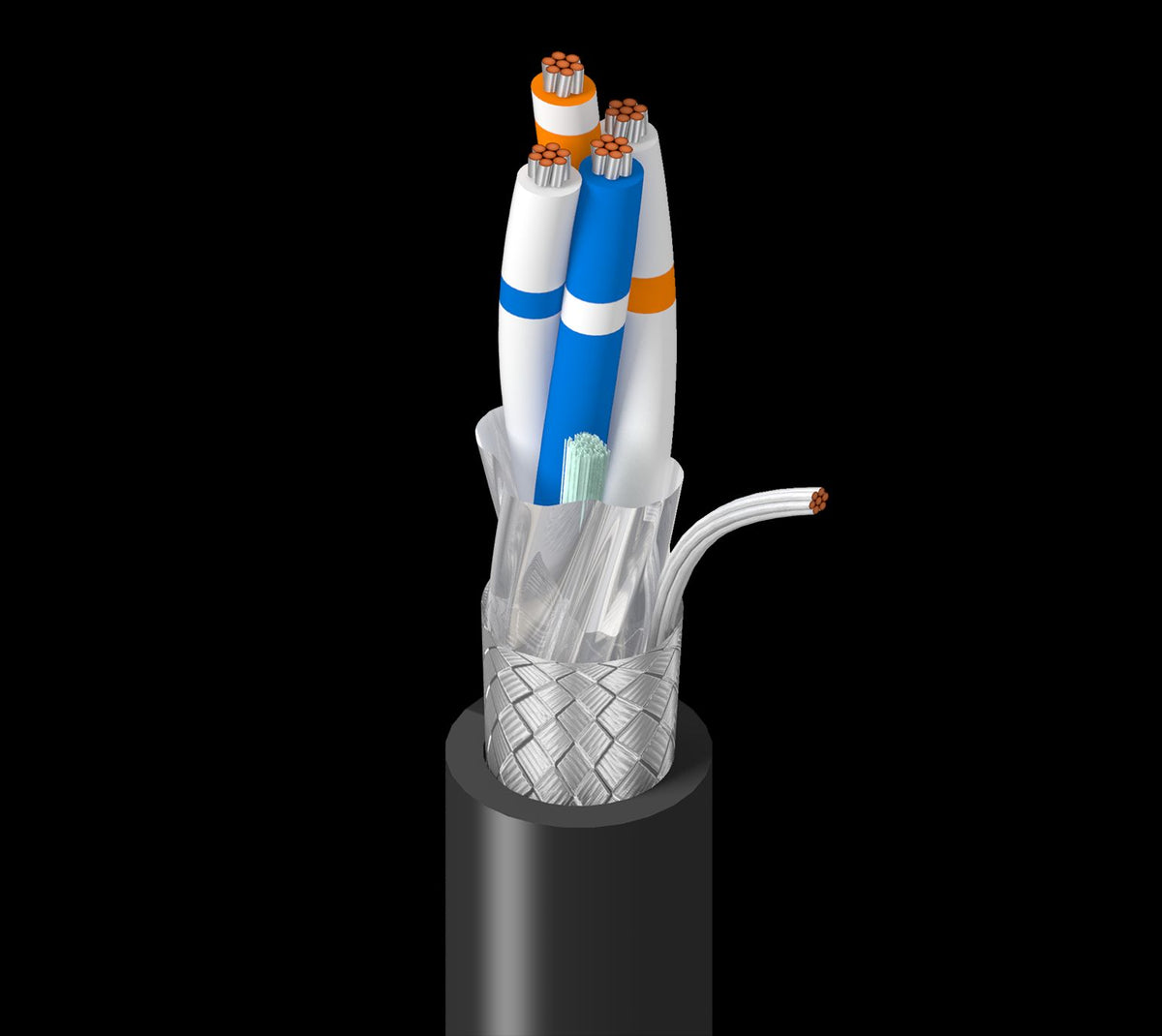

Belden 3107ELW.02305 RS‑485 2‑Pair 22AWG LSZH Multi‑Pair Industrial Cable
SKU: 3107ELW.02305Brand: Belden
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- 22 AWG stranded Tinned Copper conductors
- Foamed Polyethylene insulation
- Overall Beldfoil and Tinned Copper braid shield
- Low Smoke Zero Halogen (LSZH) jacket
- CPR Euroclass Cca-s1,d1,a1 rated
- 120 Ohm characteristic impedance
Frequently bought together
Belden
Belden 3107ENH.00305 22/2 RS-485 Tinned Copper Stranded Cable, Foil + Braid Shielding, LSZH / FRNC Jacket
Sale price£1,939.65
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Belden
Belden 3108A 0101000 22AWG 3-Pair Multi-Conductor, Non-Plenum, 1000', Black
Sale price£2,411.00
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Belden
Belden 3108DB 0101000 22AWG 3-Pair Shielded Multi-Pair Cable, Stranded, 304.8m (1000')
Sale price£3,154.95
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Belden
Belden 3109A 0101000 22AWG 4-Pair Multi-Pair Twisted Cable, 304.8m (1000'), Black
Sale price£3,447.10
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Belden
Belden 3109DB 0101000 22AWG 4-Pair Tinned Copper Cable, Shielded, 304.8m (1000')
Sale price£4,171.05
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Product details
RS-485, 2 Pair, 22 AWG stranded (7x32) Tinned Copper conductors, Foamed Polyethylene insulation, twisted pairs, overall Beldfoil (100% coverage) + Tinned Copper braid shield (65% coverage), 22 AWG stranded Tinned Copper drain wire, LSZH jacket, CPR Cca.
Main Features
- 22 AWG stranded Tinned Copper conductors
- Foamed Polyethylene insulation
- Overall Beldfoil and Tinned Copper braid shield
- Low Smoke Zero Halogen (LSZH) jacket
- CPR Euroclass Cca-s1,d1,a1 rated
- 120 Ohm characteristic impedance
- UV/Sunlight resistant (Black only)
- Oil resistant
- 78% nominal velocity of propagation
- Suitable for DMX-512 applications
Specifications
| American Wire Gauge | 22AWG |
|---|---|
| Amperage | 2.7A |
| Application/Usage | Instrumentation and computer cable. For EIA RS-485 transmissions applications |
| Cable Length | 305m |
| Cable Type | Multi-Pair Cable |
| Compatibility | DMX-512; EIA RS-485 |
| Conductor Count | 4 |
| Conductor Material | Tinned Copper |
| CPR Euroclass Rating | Cca-s1,d1,a1 |
| Diameter | 8.9mm |
| Environmental Certification | Halogen Free; Oil Resistance; RoHS Compliant; Sunlight Resistance |
| Environmentally Friendly | Yes |
| Features | 120 Ohm characteristic impedance; 22 AWG stranded Tinned Copper conductors; 78% nominal velocity of propagation; CPR Euroclass Cca-s1,d1,a1 rated; Foamed Polyethylene insulation; Low Smoke Zero Halogen (LSZH) Jacket; Oil resistant; Overall Beldfoil and Tinned Copper braid shield; Suitable for DMX-512 applications; UV/Sunlight resistant (Black only) |
| Frequency | 1MHz |
| Impedance | 120Ohm |
| Indoor/Outdoor | Indoor; Outdoor |
| Insulation Material | PE (Polyethylene) |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Limited Warranty | 1-Year |
| Material | Aluminum; Low Smoke Zero Halogen; Polyester; Polyethylene; Tinned Copper |
| Number of Conductors | 4 |
| Number of Pairs | 2 |
| Package Type | Reel/Spool |
| Product Line | Belden Classics |
| Product Type | Connector Cables |
| Shielding | Yes |
| Solid or Stranded | Stranded |
| Voltage Rating | 300V |
| Weight | 89.00kg |
| Maximum Operating Temperature | 80°C |
| Additional Information | Revision Date: 03-09-2026; Revision Number: 0.193 |
| CE Marking | Yes |
| Certifications & Standards | DMX-512; EN 50290-2-20; IEC 60332-1-2; IEC 60754-1; IEC 60754-2; IEC 61034-2; IEC 62821-1; UL 1581 sec 1200 |
| Colour | Orange |
| Localization | English |
| Operating Temperature (T-T) | -45-80°C |
| Operating Voltage | 300 V |
| RoHS Compliant | Compliant |
| Storage Temperature (T-T) | -45-80°C |
| UKCA Marking | Yes |
| WEEE Compliant | Compliant |
