BLE ENDCLIFFE 15W IP65 Circular Emergency Amenity Light c/w Photocell - White Base (EL-120701-WH-M3-DD)
SKU: EL-120701-WH-M3-DDBrand: BLE Lighting & Power
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
BLE ENDCLIFFE 15W IP65 Circular Emergency Amenity Light c/w Photocell - White Base (EL-120701-WH-M3-DD)
£135.40
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- IP65 rated and weatherproof
- Easy to install and maintain
- Reduced power consumption
- Surface mounted
- Impact-modified polycarbonate housing and diffuser
- 3CCT selectable colour temperature
Frequently bought together
BLE Lighting & Power
BLE Exit Legend for Thorncliffe Exit Box - Arrow Down (EL-131305-DO)
Sale price£7.40
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
BLE Lighting & Power
BLE Exit Legend for Thorncliffe Exit Box - Arrow Left/Right (EL-131305-LR)
Sale price£7.40
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
BLE Lighting & Power
BLE Exit Legend for Thorncliffe Exit Box - Arrow Up (EL-131305-UP)
Sale price£7.40
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
BLE Lighting & Power
BLE Exit Legend for WESTON Hanging Exit Sign - Down Arrow - ISO Version (EL-131802-DO)
Sale price£5.60
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
BLE Lighting & Power
BLE Exit Legend for WESTON Hanging Exit Sign - Left/Right Arrow - ISO Version (EL-131802-LR)
Sale price£5.60
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Product details

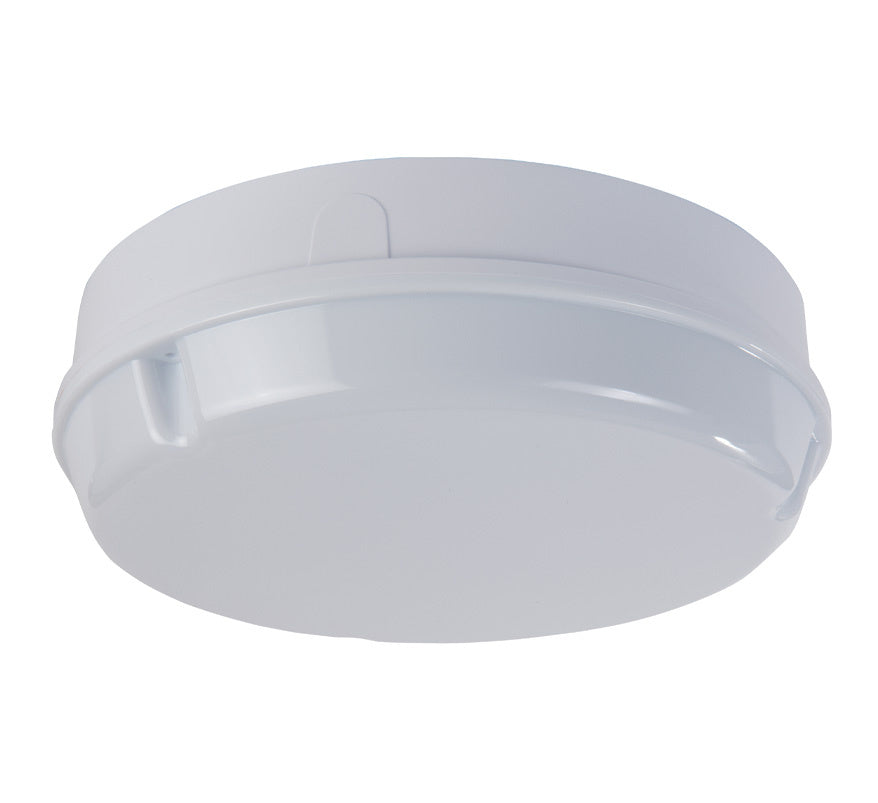

The BLE ENDCLIFFE EL-120701-WH-M3-DD is a circular LED amenity light with a white base and a 3-hour emergency function. An integral photocell provides dusk-to-dawn switching. Its IP65, weatherproof construction makes it suitable for a wide range of internal and external applications, with a replaceable 6.4V LiFePO4 battery providing emergency lighting if the mains supply fails.
Key features
- IP65 rated and weatherproof
- Easy to install and maintain
- Reduced power consumption
- Surface mounted
- Impact-modified polycarbonate housing and diffuser
- 3CCT selectable colour temperature
- Integral photocell for dusk-to-dawn operation
- 3-hour emergency version
Technical specifications
- Part number: EL-120701-WH-M3-DD
- Supply: 220-240V AC, 50Hz
- Power: 15W
- Power factor: 0.94
- Electrical class: Class I
- Light source: LED
- Colour temperature: 3CCT
- CRI: 70
- Beam angle: 120°
- Mains lumen output: 1090lm
- Emergency lumen output: 230lm
- Emergency duration: 3 hours
- Testing: Manual
- Battery: LiFePO4 6.4V, 1.0Ah, replaceable
- Recharge time: 24 hours
- Sensor: Photocell
- Sensor type: Filtered Silicone Photodiode
- Daylight threshold: 70 lux on, 35 lux off
- IP rating: IP65
- IK rating: IK10
- Housing: Polycarbonate
- Diffuser: opal polycarbonate
- Colour: White
- Mounting: Surface
- Dimensions: Ø 318mm, D 97mm
- Weight: 1914g
- Operating temperature: 0 to +40°C
- Lamp life: 50,000 hours
- Product warranty: 10 years
- Battery warranty: 10 years
- Manufactured in accordance with: BS EN 60598-1, BS EN 60598-2-22
- Marking: CE and UKCA
Datasheet
BLE ENDCLIFFE 15W IP65 Circular Emergency Amenity Light c/w Photocell - White Base (EL-120701-WH-M3-DD) Need the datasheet? Our team will email it to you. Request datasheet
