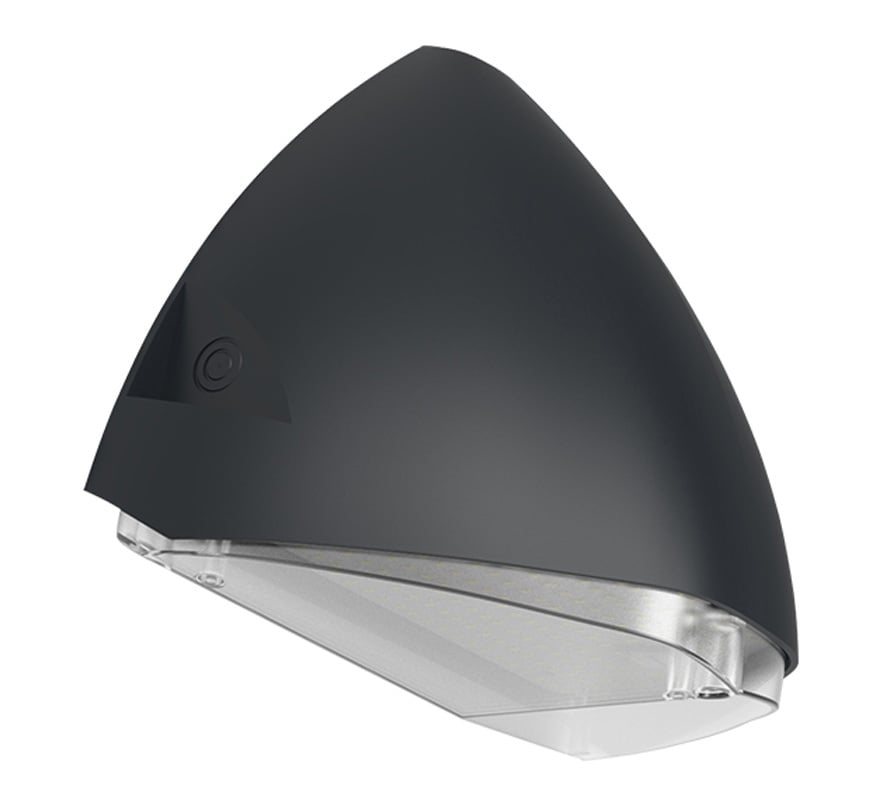

BLE Lighting & Power EL-121101-AN-M3 is an IP65 diecast LED wall pack in anthracite with a 3-hour emergency LiFePO4 battery, listed by BLE in its ECCLESALL LED wall light range. Both wattage and colour temperature are selectable on site, so one product choice suits multiple applications, and the integral battery provides emergency lighting if the mains supply fails.
Key features
- 3-hour emergency version with LiFePO4 battery
- Selectable wattage: 13W, 18W or 28W
- Selectable colour temperature (2CCT)
- High efficiency, up to 140 lm/W, with non-flicker driver
- IP65 and IK10 rated diecast aluminium body
- Suitable for rear and side cable entry, conduit and BESA box installation
- PCB integrated with the diffuser for easy installation
Technical specifications
- BLE code: EL-121101-AN-M3
- Input voltage: 220-240V
- Wattage: 13 / 18 / 28W selectable
- Lumen output: 1700-3500 lm
- Emergency lumen output: 275 lm
- Emergency duration: 3 hours
- Battery: LiFePO4 6.4V 1.5Ah
- CRI: 80
- Ingress/impact protection: IP65, IK10
- Operating temperature: 0 to +40°C
- Material: diecast aluminium
- Finish: anthracite
- Warranty: 5 years; battery warranty 5 years
