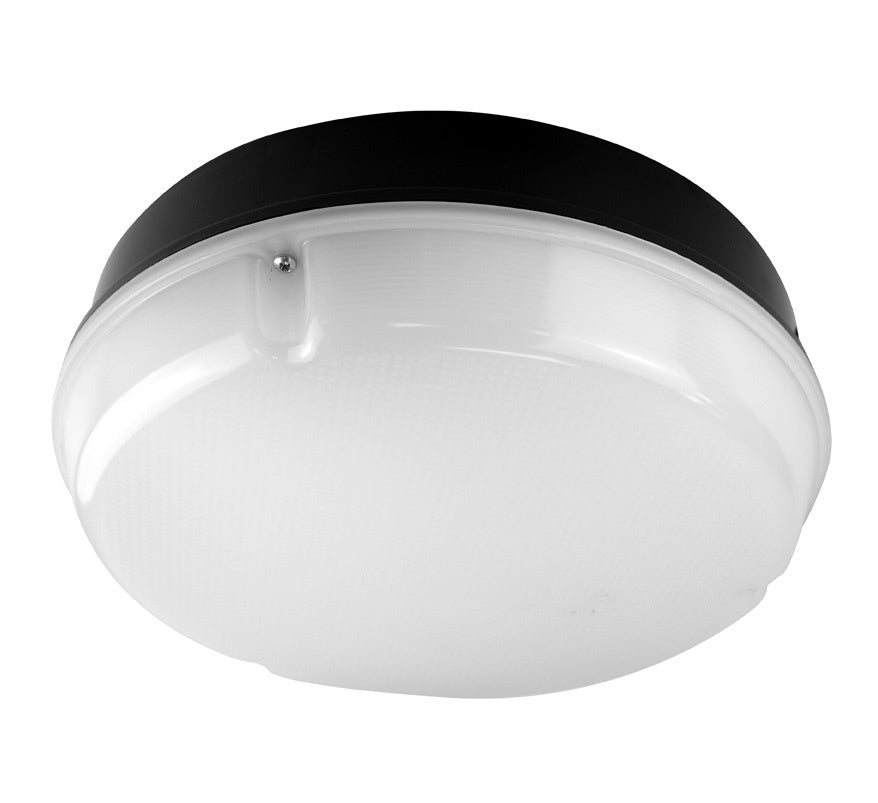

The BLE ENDCLIFFE EL-120701-BL-M3 is an IP65, weatherproof LED amenity light with a 3-hour emergency function from a 6.4V LiFePO4 battery. It is a versatile, easy-to-install and easy-to-maintain fitting for a wide range of applications, with a black finish.
Key features
- Surface mounted
- Impact-modified polycarbonate housing and diffuser
- Reduced power consumption
- IP65 rated and weatherproof
- Emergency version, manual test
Technical specifications
- Part number: EL-120701-BL-M3
- Supply: 220-240V AC, 50Hz
- Power: 15W
- Power factor: 0.94
- Electrical class: Class I
- Light source: LED
- Colour temperature: 3CCT
- CRI: 70
- Beam angle: 120°
- Mains lumen output: 1090lm
- Emergency lumen output: 230lm
- Emergency duration: 3 hours
- Testing: Manual
- Battery: LiFePO4 6.4V, 1.0Ah, replaceable
- Recharge time: 24 hours
- IP rating: IP65
- IK rating: IK10
- Housing: Polycarbonate
- Diffuser: opal polycarbonate
- Colour: Black
- Mounting: Surface
- Dimensions: Ø 318mm, D 97mm
- Weight: 1914g
- Operating temperature: 0 to +40°C
- Lamp life: 50,000 hours
- Product warranty: 10 years
- Battery warranty: 10 years
- Manufactured in accordance with: BS EN 60598-1, BS EN 60598-2-22
- Marking: CE and UKCA
