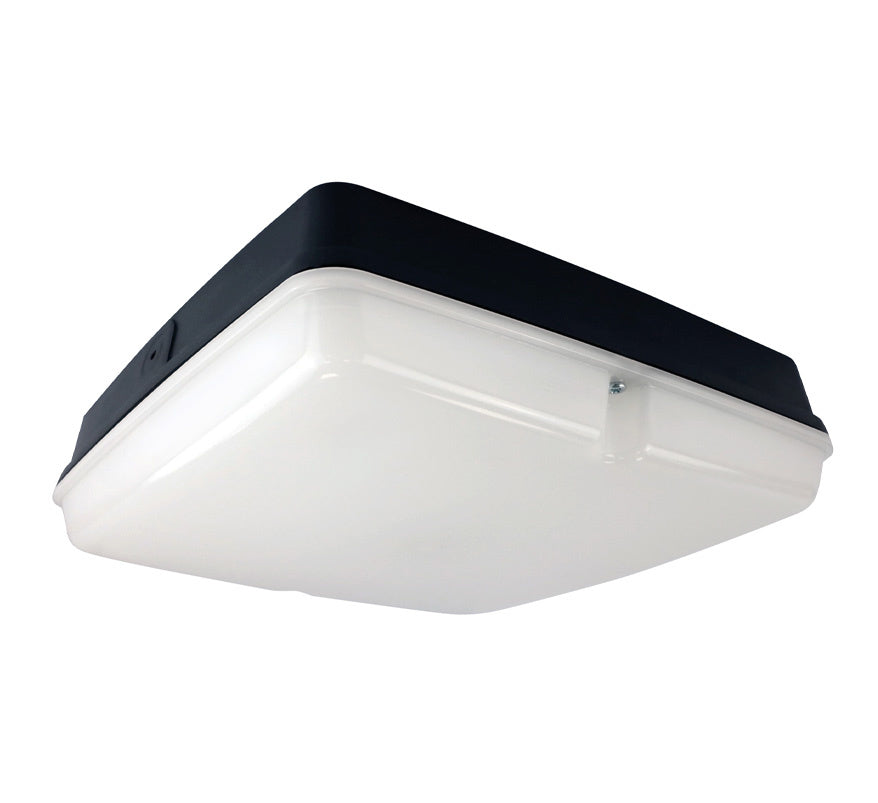

BLE WHIRLOW 15W IP65 Square Emergency Amenity Light c/w Photocell - Black Base (EL-120901-BL-M3-DD)

The BLE WHIRLOW EL-120901-BL-M3-DD is a square LED amenity light with a black base and a 3-hour emergency function. An integral photocell provides dusk-to-dawn switching. Its IP65, weatherproof construction makes it suitable for a wide range of internal and external applications, with a replaceable 6.4V LiFePO4 battery providing emergency lighting if the mains supply fails.

Key features

• IP65 rated and weatherproof
• Easy to install and maintain
• Reduced power consumption
• Surface mounted
• Impact-modified polycarbonate housing and diffuser
• 3CCT selectable colour temperature
• Integral photocell for dusk-to-dawn operation
• 3-hour emergency version

Technical specifications

• Part number: EL-120901-BL-M3-DD
• Supply: 220-240V AC, 50Hz
• Power: 15W
• Power factor: 0.76
• Electrical class: Class I
• Light source: LED
• Colour temperature: 3CCT
• CRI: 80
• Beam angle: 110°
• Mains lumen output: 1090lm
• Emergency lumen output: 230lm
• Emergency duration: 3 hours
• Testing: Manual
• Battery: LiFePO4 6.4V, 1.0Ah, replaceable
• Recharge time: 24 hours
• Sensor: Photocell
• Sensor type: Filtered Silicone Photodiode
• Daylight threshold: 70 lux on, 35 lux off
• IP rating: IP65
• IK rating: IK10
• Housing: Polycarbonate
• Diffuser: opal polycarbonate
• Colour: Black
• Mounting: Surface
• Dimensions: L 276mm, W 276mm, D 97mm
• Weight: 1656g
• Operating temperature: 0 to +40°C
• Lamp life: 50,000 hours
• Product warranty: 10 years
• Battery warranty: 10 years
• Manufactured in accordance with: BS EN 60598-1, BS EN 60598-2-22
• Marking: CE and UKCA
