C-TEC 5 Series 24V 1.5A EN54-4 Encased Power Supply PCB Only (BF560-24/E)

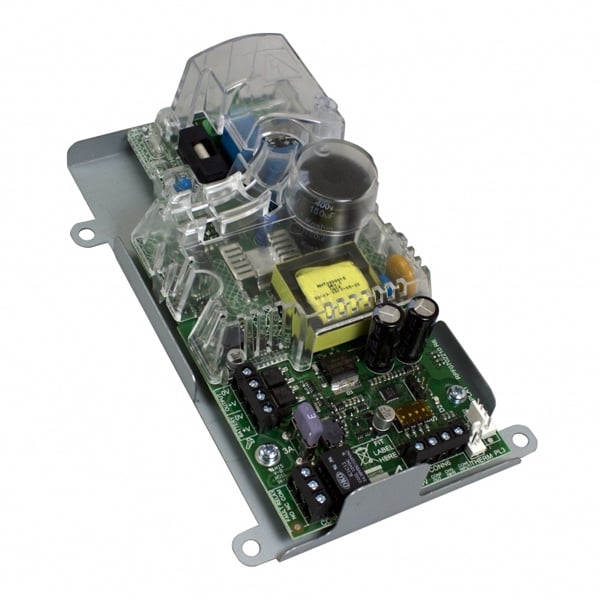

The C-TEC BF560-24/E is an encased (caged) 24V 1.5A switch mode/digital hybrid power supply from C-TEC's 5 Series. It uses the same electronics as the LPCB certified BF560-24 EN54-4/A2 boxed PSU, but is supplied on a metal base plate with a plastic cover so it can be mounted inside a third-party (OEM) enclosure. Full compliance with the relevant standards must be checked by the responsible person once the PSU is installed in a suitable enclosure.

Key features

• Same electronics as the BF560-24 EN54-4/A2 boxed 24V 1.5A PSU
• Metal base plate for straightforward mounting inside third-party enclosures
• Plastic cover over the PCB guards against touching live parts (to VDE 0100-410)
• Single-pole volt-free changeover relay that switches on any fault condition
• Fault type and hazardous voltages present LEDs
• Two selectable battery charge currents
• Battery resistance monitoring to EN54-4/A2; fault impedance limits can be optimised to suit the load current
• Mains fail simulation mode

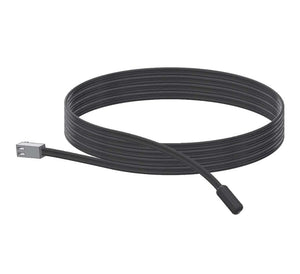

• On-board temperature sensor, with an optional BF322 remote battery temperature sensor

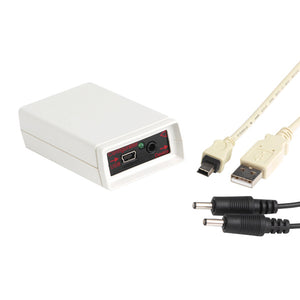

• Can be customised with a BF423 configurator and PC
• Electronic functions comply with EN50131-6 grades 1-4 for security applications

Technical specifications

• Output: 24V DC, total output current limited to 1.5A
• I max.a: 1.3A or 0.8A selectable; I max.b: 1.5A (charging turned off)
• Mains supply: 230V 50/60Hz, rated current 400mA r.m.s.
• Battery charge capacity: 2Ah up to 12Ah (charged to 80% in 24 hours)
• Max. battery size: up to 12Ah VRLA, depending on the enclosure used
• Indicators: Supply Present (green), General Fault (amber), Auxiliary Fault (amber), Hazardous Voltages Present (red)
• Dimensions: 103mm (W) x 173mm (H) x 53mm (D)
• Construction: Zintec base, polycarbonate cover
• IP rating: dependent on mounting enclosure
• Weight: 324g (without batteries)
• Operating temperature: -5°C to +40°C, max. 95% relative humidity
