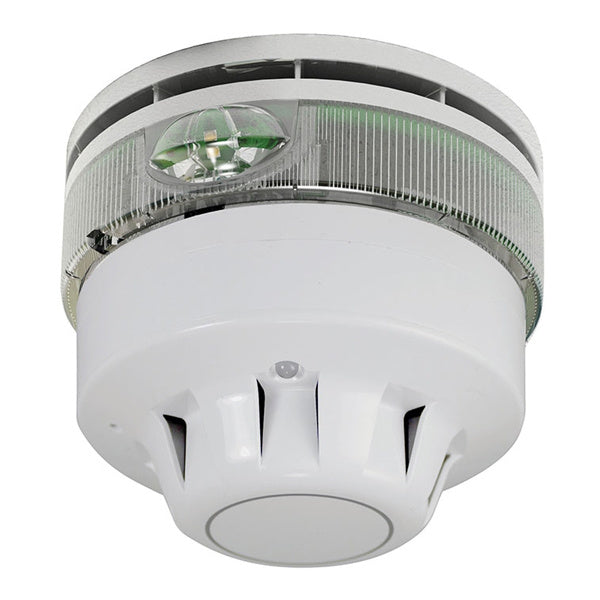

The C-TEC BF460A/CX/W is an addressable base VAD (visual alarm device) giving C-3-8 light coverage (min 0.4 lux over a 3 x 8m cylindrical area) when ceiling mounted. It is designed for C-TEC's XFP and ZFP addressable fire panels running the Apollo XP95/Discovery protocol. It is certified to EN54-23 and EN54-17 by the LPCB and has a built-in short circuit loop isolator.
Key features
- C-3-8 light distribution (151m³ cylindrical coverage)
- White flash at 0.5Hz
- Onboard short circuit loop isolator
- Low 550µA quiescent current and 10mA alarm current
- Group addressing lets multiple devices operate together
- Ceiling mounting: stand-alone with an optional BF330CTLIDW white or BF330CTLIDR red cap, or stacked with a detector base
- Supplied with a BF431QCP quick connect plate and detector spur wires
Technical specifications
- Approvals: certified to EN54-23 and EN54-17 by the LPCB
- VAD category: C-3-8
- Flash rate and colour: 0.5Hz; white
- Protocol: Apollo XP95/Discovery (C-TEC XFP/ZFP panels)
- Quiescent current: 550µA at 24V DC
- Indicators: polling (green LED) and short circuit isolator active (amber LED)
- Supply voltage: 21 to 28V DC
- Alarm current: 10mA
- Dimensions: 122mm diameter x 46mm deep (not including optional detector and base)
- IP rating: IP21C (Type A)
- Weight: 170g
- Operating temperature: -10°C to +55°C, max 95% RH (non-condensing)
What's in the box
- 1 x BF460A/CX/W base VAD
- 1 x BF431QCP quick connect plate
- Detector spur wires
