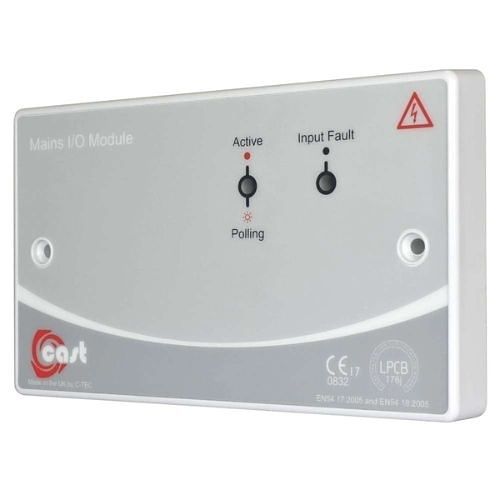

C-Tec CA731 CAST Mains Switching Input Output Module
£43.10
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- LPCB certified to EN54-17 and 18 and Kiwa Telefication and DBI certified to EN54-13
- Also certified to the relevant parts of EN54 with Swedish certification body SBSC
- A mains-switching version of our CA730 input output module
- Capable of switching 5A at 230 V AC or 5A 30V DC
- Incorporates the functions of a switch monitor, zone monitor and output unit
- Can be configured to monitor any combination of the following - Up to 20 conventional detectors and 10 MCPs, Any normally open switch with an EOL resistor fitted, A simple normally open or closed switch (non-fault monitored)
Frequently bought together
C-TEC
C-Tec CA740 CAST Series 4-Way Conventional Zone to Addressable Zone Converter
Sale price£80.35
In stock
C-TEC
C-TEC Cardioid Ambient Ceiling Microphone
Sale price£131.30
Out of stock. Lead time 2 to 6 weeks, estimate only
C-TEC
C-TEC CAST Addressable Manual Call Point (Universal Mounting) (Red) (CA470)
Sale price£23.60
In stock
Product details
CAST' is the world's most-advanced 'distributed intelligence' fire alarm system protocol. Conceived, designed and realised by C-TEC, it involved the creation of a powerful proprietary communication protocol (C-TEC Addressable System Technology, CAST) and multiple control panels and field devices.
Main Features
- LPCB certified to EN54-17 and 18 and Kiwa Telefication and DBI certified to EN54-13
- Also certified to the relevant parts of EN54 with Swedish certification body SBSC
- A mains-switching version of our CA730 input output module
- Capable of switching 5A at 230 V AC or 5A 30V DC
- Incorporates the functions of a switch monitor, zone monitor and output unit
- Can be configured to monitor any combination of the following - Up to 20 conventional detectors and 10 MCPs, Any normally open switch with an EOL resistor fitted, A simple normally open or closed switch (non-fault monitored)
- Onboard short-circuit loop isolator
- 6mA typical alarm current (1.7mA typical quiescent current) at 22-40V DC
- Indicators for Loop polling, input faults and relay status
- Includes volt free changeover contacts that can be used to trigger rollershutter doors, gas shut-off valves, smoke vents, etc
Specifications
| Application/Usage | Switch Monitor, Zone Monitor and Mains-switching output unit in one device |
|---|---|
| Compatibility | C-TEC's XFP/ZFP CAST Addressable Fire Panels |
| Depth | 22.00mm |
| Environmental Certification | CE; DBI; KIWA; LPCB; SBSC; UKCA |
| Features | 6mA typical alarm current (1.7mA typical quiescent current) at 22-40V DC; A mains-switching version of our CA730 input output module; Also certified to the relevant parts of EN54 with Swedish certification body SBSC; Can be configured to monitor any combination of the following - Up to 20 conventional detectors and 10 MCPs, Any normally open switch with an EOL resistor fitted, A simple normally open or closed switch (non-fault monitored); Capable of switching 5A at 230 V AC or 5A 30V DC; Includes volt free changeover contacts that can be used to trigger rollershutter doors, gas shut-off valves, smoke vents, etc; Incorporates the functions of a switch monitor, zone monitor and output unit; Indicators for Loop polling, input faults and relay status; LPCB certified to EN54-17 and 18 and Kiwa Telefication and DBI certified to EN54-13; Onboard short-circuit loop isolator |
| Height | 87.00mm |
| Indoor/Outdoor | Indoor |
| Ingress Protection Rating | IP40 |
| Input Voltage | 22-40V DC |
| Limited Warranty | 5-Year |
| Material | ABS Polycarbonate |
| Number of Inputs | 1 |
| Power Source | DC Power |
| Product Series | CAST |
| Product Type | Module |
| Weight | 122.00g |
| Width | 147.00mm |
| CE Marking | Yes |
| Certifications & Standards | CE; DBI; KIWA; LPCB; SBSC; UKCA |
| Colour | Grey |
| Country of Origin | UK |
| Dimensions | 147 mm W x 87 mm H x 22 mm D |
| LPCB Certified | Yes |
| Operating Temperature (T-T) | -10-55°C |
| RoHS Compliant | Compliant |
| SBSC Certified | Yes |
| UKCA Marking | Yes |
| WEEE Compliant | Compliant |
