C-TEC CAST Addressable Manual Call Point (Universal Mounting) (Red) (CA470)
SKU: CA470Brand: C-TEC
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 26 | 1 to 3 working days |
Need help choosing?
Our UK team can check compatibility, stock and project pricing for you.
0113 518 0540info@jemsystems.co.uk
C-TEC CAST Addressable Manual Call Point (Universal Mounting) (Red) (CA470)
£23.60
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- For C-TEC XFP and ZFP CAST protocol addressable fire panels
- On-board short circuit loop isolator
- Smooth-action resettable element that mimics the feel of breaking glass
- Red LED 'alarm ring' lights up the call point face on activation
- Photoluminescent operating window remains visible for up to 5 minutes
- Supplied with a reset/back box removal key and a 'Not in Use' label
Frequently bought together
C-TEC
C-TEC CAST Base Sounder VAD White
Sale price£31.05
Out of stock. Lead time 2 to 6 weeks, estimate only
C-TEC
C-TEC CAST Hi-Output Wall Sounder VAD Deep Red
Sale price£38.15
Out of stock. Lead time 2 to 6 weeks, estimate onlyProduct details

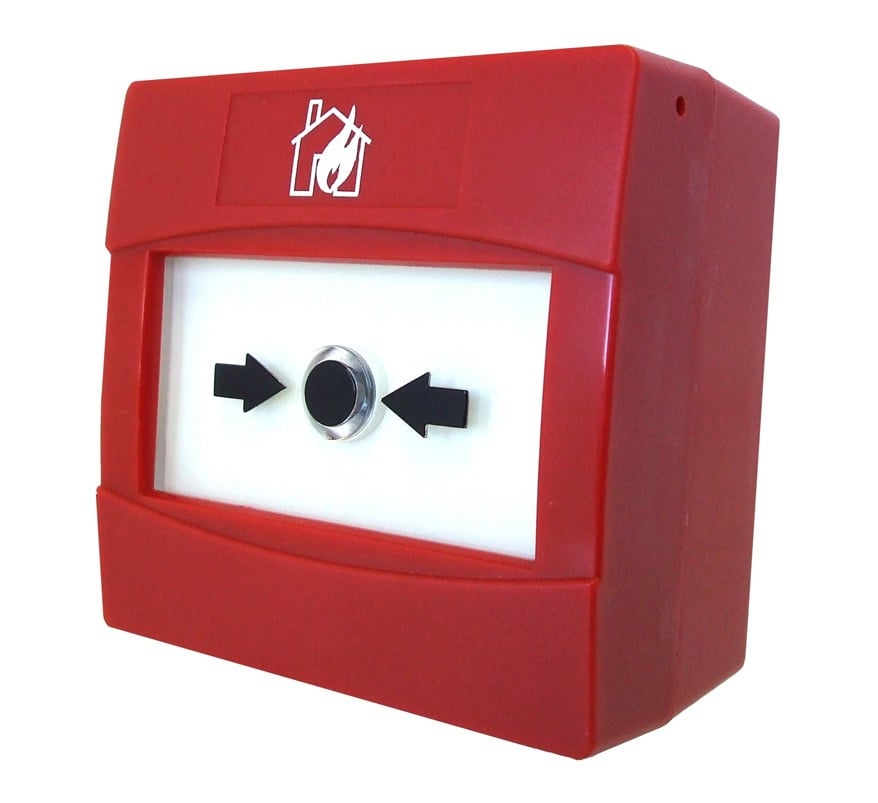

The C-TEC CA470 is a red addressable manual call point for C-TEC's XFP and ZFP fire panels using the CAST protocol. It can be surface or flush mounted: it is supplied with a surface back box and a flush mount adaptor plate. It is LPCB certified to EN54 parts 11 and 17, and certified to EN54-13 by Kiwa Telefication.
Key features
- For C-TEC XFP and ZFP CAST protocol addressable fire panels
- On-board short circuit loop isolator
- Smooth-action resettable element that mimics the feel of breaking glass
- Red LED 'alarm ring' lights up the call point face on activation
- Photoluminescent operating window remains visible for up to 5 minutes
- Supplied with a reset/back box removal key and a 'Not in Use' label
- Universal mounting: surface back box and flush mount adaptor plate included
Technical specifications
- Protocol: C-TEC CAST
- Approvals: LPCB certified to EN54-11 and EN54-17; EN54-13 certified by Kiwa Telefication
- Supply voltage: 22 to 40V DC
- Quiescent current: 370µA typical
- Alarm current: 5mA typical
- Indicator: red alarm ring, steady when activated, flashing when polling
- Connections: loop in, loop out
- Dimensions: 87mm (W) x 88mm (H) x 62mm (D), including back box
- Construction: red ABS polycarbonate, glass fibre window
- IP rating: IP42
- Weight: 180g
- Operating temperature: -10°C to +55°C
What's in the box
- CA470 manual call point
- Surface back box and flush mount adaptor plate
- Reset/back box removal key
- 'Not in Use' label
