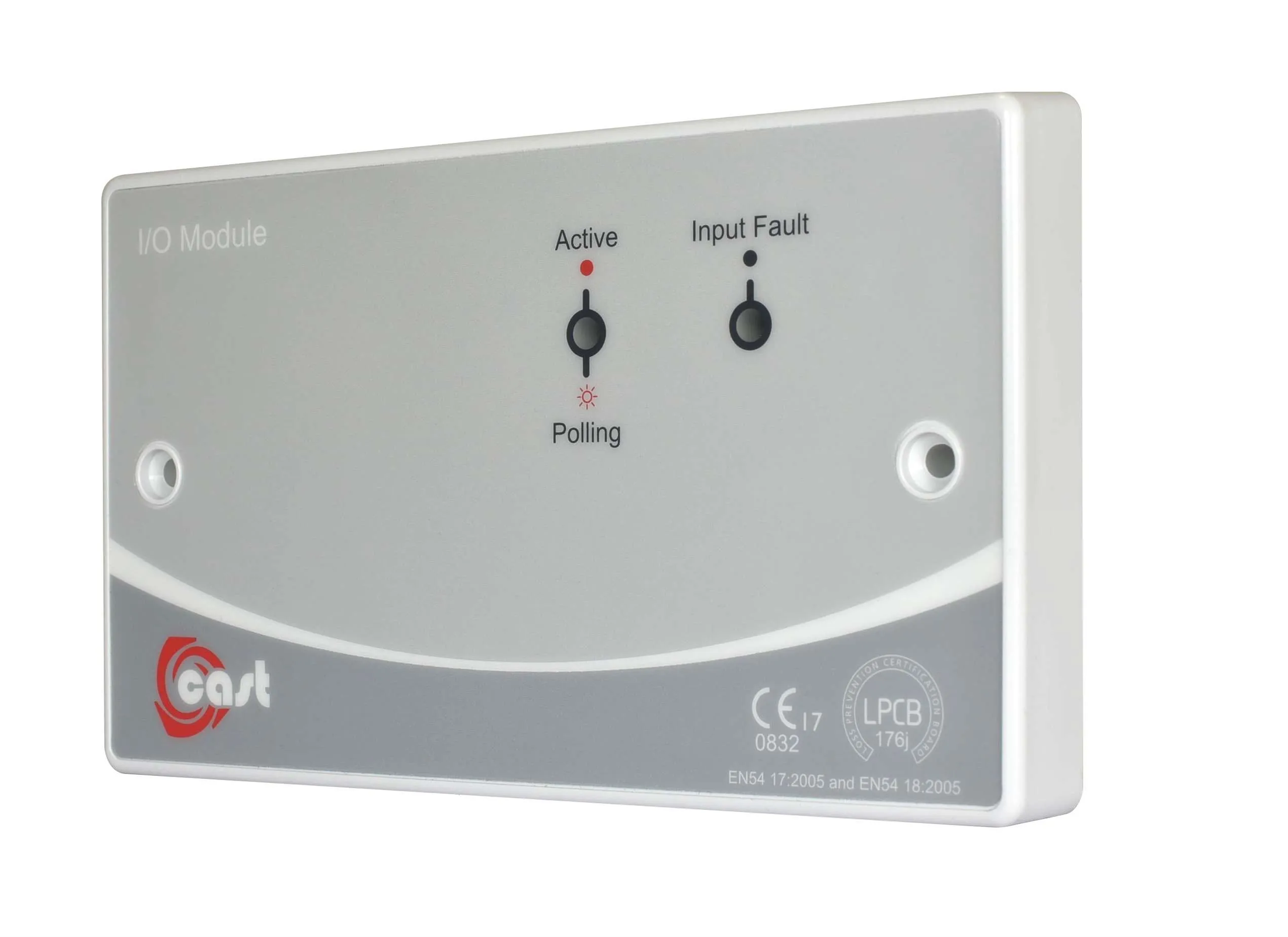

C-TEC CA730 CAST Input Output Module

LPCB certified to EN54-17 & 18 and Kiwa Telefication certified to EN54-13. Incorporates the functions of a switch monitor, zone monitor and output unit. Can be configured to monitor any combination of:- • Up to 20 conventional detectors & 10 MCPs • Any normally open switch with an EOL resistor fitted. • A simple normally open or closed switch (non-fault monitored). Onboard short-circuit loop isolator. 5.5mA typical alarm current (1.3mA typical quiescent current) @ 22-40V DC. Indicators for Loop polling, input faults and relay status. Can switch 1A@30V DC (or 0.3A@125V AC) Includes volt free changeover contacts that can be used to trigger rollershutter doors, gas shut-off valves, smoke vents, etc. Mountable on a C-TEC NCP-26 surface box or a standard UK 25mm double gang back box (not supplied).
