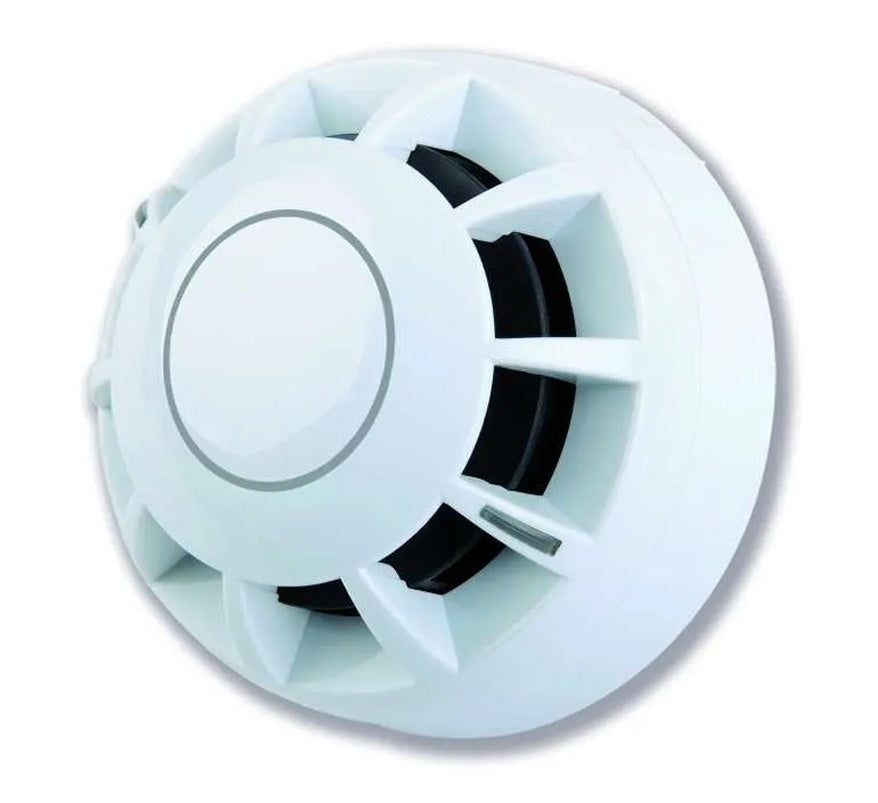

The C-TEC CA416 is an addressable optical smoke detector for C-TEC's XFP and ZFP CAST protocol addressable fire alarm panels. It is LPCB certified to EN54-7 and EN54-17 and Kiwa Telefication certified to EN54-13.
Key features
- Optical detection using an infrared light source and photodiode
- Smart algorithms to help reduce false alarms
- Drift compensation
- On-board short-circuit loop isolator
- Two 8mm x 2mm ultra-bright red LED indicating strips giving 360° visibility; optional remote LED
- Programmable multi-function status LED
- Mounts on the C-TEC CA408 CAST base with integrated locking mechanism and ID tag (CA408R relay base also available)
Technical specifications
- Order code: CA416
- Approvals: LPCB certified to EN54-7 and EN54-17; Kiwa Telefication certified to EN54-13
- Compatibility: C-TEC XFP/ZFP CAST protocol addressable fire panels
- Sensitivity: 0.16dB/m
- Supply wiring: 2-wire, polarity sensitive
- Operating voltage: 22 to 40V DC
- Quiescent current: 370µA typical
- Alarm current: 5mA typical (LEDs lit)
- Dimensions: 102.2mm diameter x 37mm deep (detector only); 57.5mm deep in base
- Construction: white polycarbonate casing rated to UL94 V-2 with nylon parts
- IP rating: IP42
- Weight: 99g (detector only); 154g (in base)
- Operating temperature: -20°C to +85°C
- Base: requires a CA408 CAST base (sold separately)
