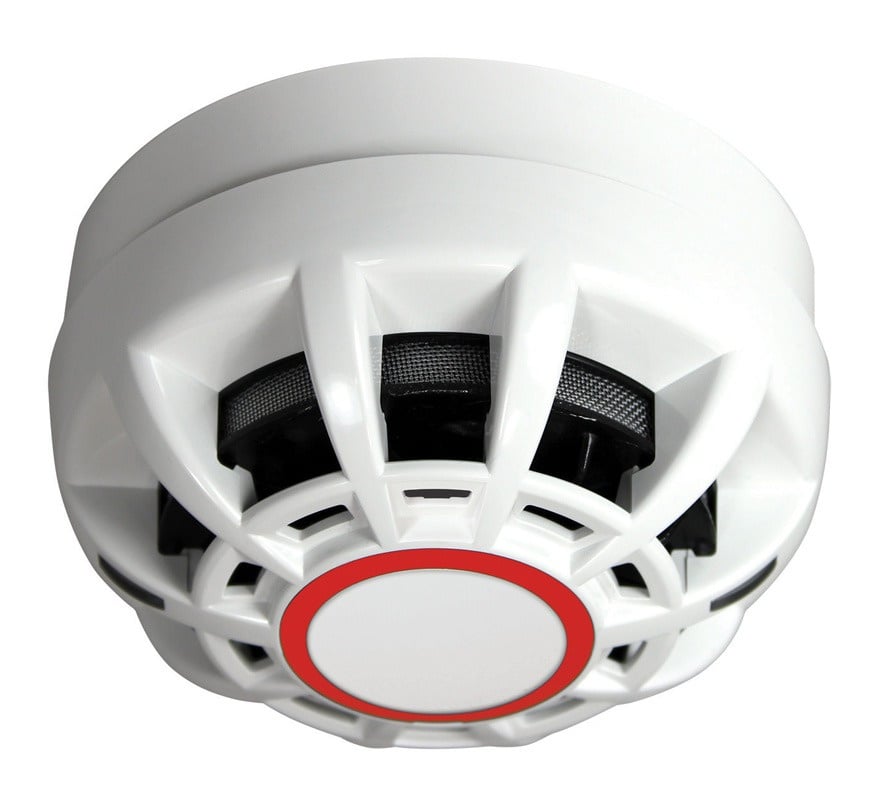

The C-TEC CP402 is a programmable CAST-PRO addressable heat detector, certified to EN54-5 and EN54-17. It works with C-TEC's ZFP touchscreen-controlled addressable fire panels running the C-TEC CAST protocol, and fits C-TEC's CA408 CAST base.
Key features
- Three programmable operating modes: Class A1R, A2 (default) or B heat detector
- Onboard short circuit loop isolator
- Two 8mm x 2mm ultra-bright red LED indicating strips
- Alarm current below 1mA
- Fits the CA408 CAST base with integrated locking mechanism and ID tag
Technical specifications
- Approvals: EN54-5 and EN54-17; CPR number 0063-CPR-242190023
- Protocol: C-TEC CAST (ZFP CAST addressable fire alarm systems)
- Detector type: Class A1R, A2 or B heat (programmable)
- Supply voltage: 22 to 40V DC
- Quiescent current: 570µA at 40V
- Alarm current: less than 1mA
- Dimensions: 105mm diameter x 48mm deep (detector only); 105mm diameter x 65mm deep (in base)
- Weight: 118g (not in base); 172g (in base)
- Supply wiring: 2-wire, polarity sensitive
- Indicators: 2 red LED strips giving 360° visibility in alarm; optional remote LED
- Connections (via CA408 base): +Ve in, +Ve out, remote LED +Ve, 0V, 0V, screen, screen
- IP rating: IP21C
- Operating temperature: -10°C to +50°C, max 95% relative humidity (non-condensing)
- Requires a CA408 CAST base (CA408R relay base also available)
