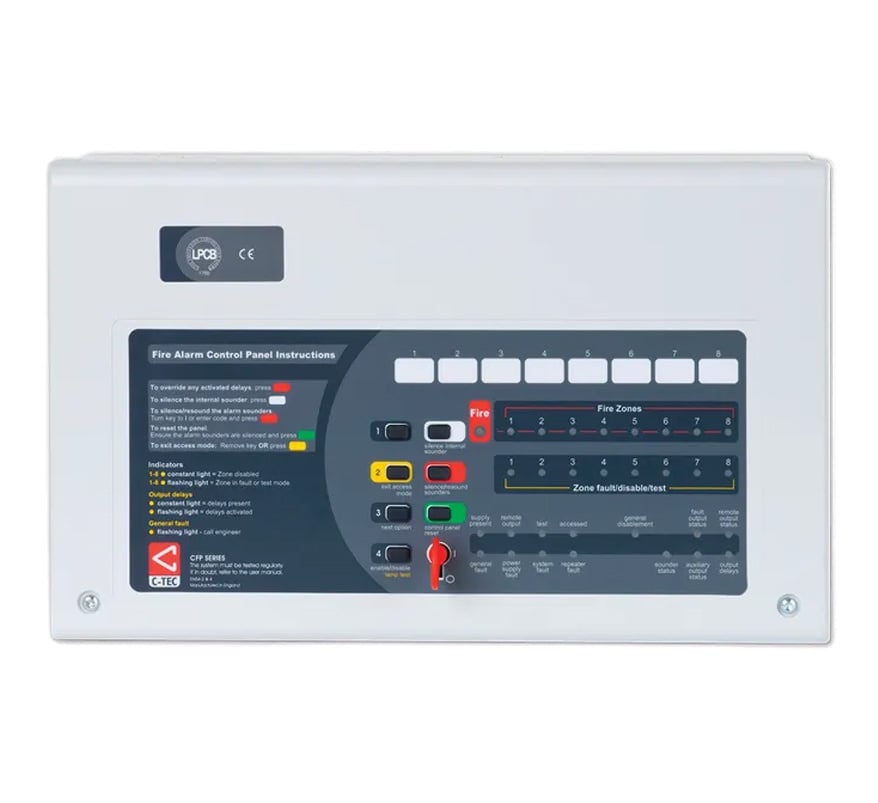

C-TEC CFP 8 Zone Conventional Fire Alarm Panel (CFP708-4)

The C-TEC CFP708-4 is a standard 8 zone conventional fire alarm control panel, certified to EN54 parts 2, 4 and 13. It is fully compatible with C-TEC's ActiV conventional fire detectors, sounders and visual alarm devices. The panel comes in a flush or surface mountable plastic enclosure that needs no bezel, and it is manufactured by C-TEC in the UK.

Key features

• LPCB certified to EN54-2 and EN54-4; EN54-13 certified by Kiwa Telefication
• Eight detector zone circuits and four conventional sounder circuits
• Integral 1.5A EN54-4/A2 switch mode power supply
• Engineering functions including zone test, coincidence (double knock), zone delays, non-latching zones and one-man walk test
• Two on-board relays (Fire and Fault) and two open-collector outputs (Remote and Reset)
• Class change and alert inputs
• Combined keypad/keyswitch entry with colour-coded buttons
• Expansion for up to eight two-wire repeaters (one CFP761 network card per system), CFP relay boards and EN54-13 sounder circuit boards
• Low 25mA quiescent current

Technical specifications

• Mains supply: 230V 50/60Hz, 350mA max
• Internal power supply: 19-28.5V (27V nominal)
• Total output current: 1.5A
• Batteries: 2 x 12V 3.2Ah VRLA in series (min 1.2Ah)
• Detector zones: 8 (max 500m per circuit)
• Max devices per zone: 25 detectors (or 32 detectors/manual call points combined)
• Call point resistor: 470 to 680Ω
• Conventional sounder circuits: 4 (max 500m per circuit), 4 x 200mA (800mA total)
• EOL resistor: 6800Ω
• Relays: Aux Fire and Fault, volt-free single pole changeover, max 1A at 30V DC
• Auxiliary output: 24V, protected by a resettable fuse
• Dimensions: 380mm (W) x 235mm (H) x 96mm (D); flush cut-out 367 x 220 x 75mm
• Construction: plastic lid and base, RAL7035 textured
• IP rating: IP30
• Weight: 1.75kg (without batteries)
• Operating temperature: -5°C to +40°C, max 95% relative humidity
