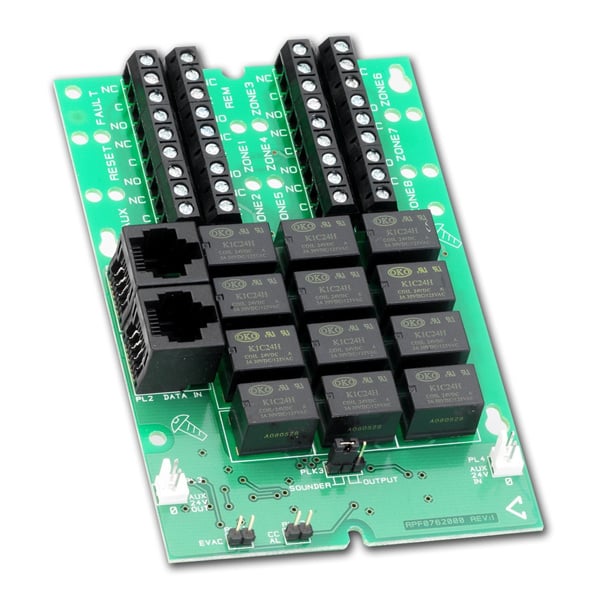

The C-TEC CFP764 is an optional relay output card for C-TEC CFP 8 zone fire alarm panels: the CFP708-4 standard conventional panel and the CFP708-2 AlarmSense two-wire panel. It gives eight output-per-zone relays, each of which changes over when its zone is in alarm (subject to conditions set out in C-TEC's instructions). The PCB mounts inside the CFP panel.
Key features
- Eight output-per-zone relays, one for each zone
- For CFP708-4 and CFP708-2 AlarmSense 8 zone panels
- Mounts inside the fire panel
Technical specifications
- Relays: 8 (one per zone)
- Contacts: single pole changeover, rated 1A at 50V
- Isolation: 50V between relays, contacts and the CFP panel
- Active relay coil current: 27mA at 27.6V supply
- Outputs are not designed to switch mains voltages
- Dimensions: 82 x 125 x 23mm (W x H x D)
- Weight: 90g
