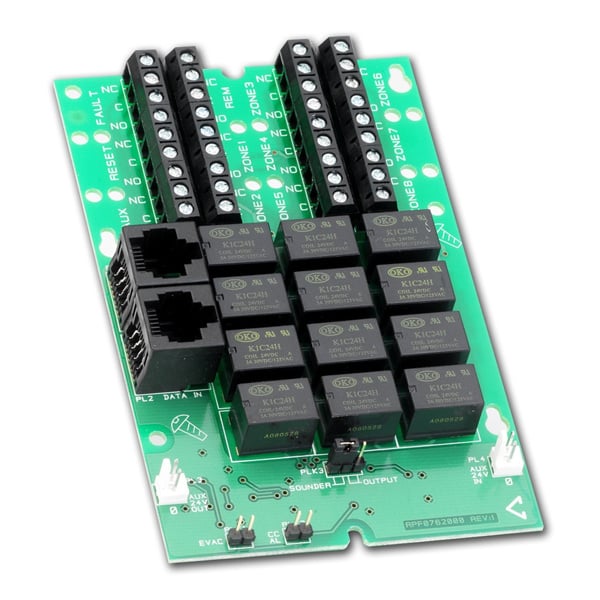

The C-TEC CFP763 is an optional relay output card for C-TEC CFP standard 2-8 zone conventional fire alarm panels and CFP AlarmSense 2-8 zone two-wire panels. It combines the four panel-controlled relays of the CFP762 (reset, fault, aux fire and remote) with eight output-per-zone relays. The PCB mounts inside the CFP panel.
Key features
- Four volt-free relay outputs: reset, fault, aux fire and remote
- Eight output-per-zone relays that change over when the corresponding zone is in alarm (subject to conditions in C-TEC's instructions)
- Reset relay: active during the panel's reset cycle
- Fault relay: failsafe and normally energised, so it changes over to signal a fault if power is removed from the panel
- Aux fire relay: active in an alarm condition once all relevant delays have expired
- Remote relay: active during any alarm condition once all relevant delays have expired
- For CFP standard and CFP AlarmSense 2-8 zone panels
Technical specifications
- Relays: 12 (4 panel-controlled plus 8 output-per-zone)
- Contacts: single pole changeover, rated 1A at 50V
- Isolation: 50V between relays, contacts and the CFP panel
- Active relay coil current: 27mA at 27.6V supply
- Outputs are not designed to switch mains voltages
- Dimensions: 82 x 125 x 23mm (W x H x D)
- Weight: 116g
