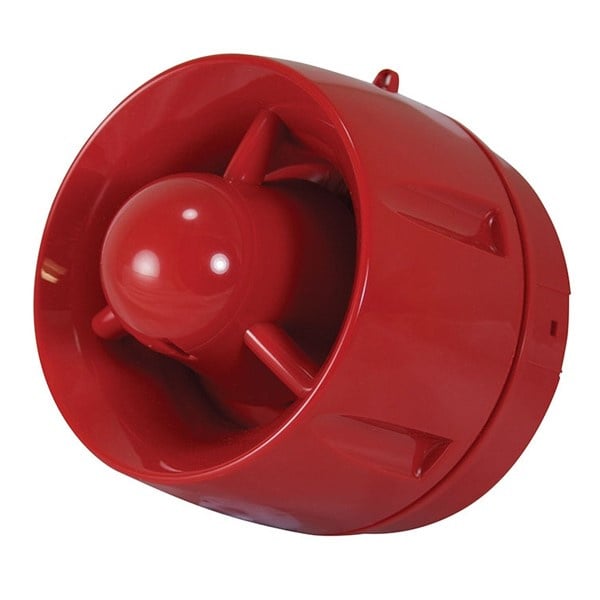

The C-TEC BF430A/CX/SR is a red, addressable hi-output wall sounder on a shallow base, giving 103dB(A) at 1m. It is designed for C-TEC's XFP and ZFP addressable fire panels running the Apollo XP95/Discovery protocol. It is certified to EN54-3 and EN54-17 by the LPCB and has a built-in short circuit loop isolator.
Key features
- 103dB(A) sound output at 1m
- Onboard short circuit loop isolator
- Group addressing lets multiple devices operate together
- Low 550µA quiescent current and 5mA alarm current
- 7 selectable volume levels and up to 15 selectable tone pairs
- Wall mounting, indoor areas only
Technical specifications
- Approvals: certified to EN54-3 and EN54-17 by the LPCB
- Protocol: Apollo XP95/Discovery (C-TEC XFP/ZFP panels)
- Quiescent current: 550µA at 24V DC
- Indicators: polling (green LED) and short circuit isolator active (amber LED)
- Supply voltage: 17 to 28V DC
- Nominal sound output: 103dB(A) (tone 1)
- Alarm current: 5mA at 24V DC (sounder on max)
- Dimensions: 108mm diameter x 99mm deep
- IP rating: IP21C (Type A)
- Weight: 215g
- Operating temperature: -10°C to +55°C, max 95% RH (non-condensing)
