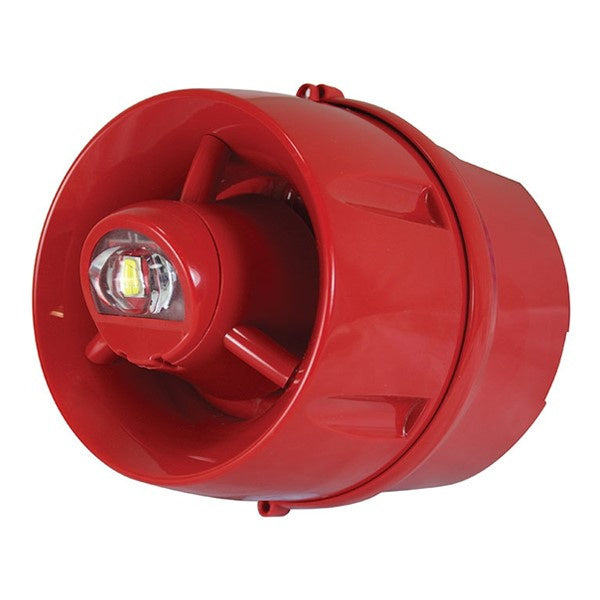

C-TEC Hi-Output IP55 Wall VAD c/w 103dB Sounder - Deep - Red (XP95/Discovery Compatible) (BF433A/CX/DR/65)

The C-TEC BF433A/CX/DR/65 is a red, addressable hi-output wall VAD (visual alarm device) with a 103dB(A) sounder, on a deep base. It gives W-2.4-8.2 light coverage (min 0.4 lux over a 2.4 x 8.2m cuboid area) when wall mounted. It is designed for C-TEC's XFP and ZFP addressable fire panels running the Apollo XP95/Discovery protocol. It is the IP55 version of C-TEC's hi-output sounder VAD and uses the same lens and electronics as the EN54-23, EN54-3 and EN54-17 certified model.

Key features

• Combined 103dB(A) sounder and white flashing VAD
• W-2.4-8.2 light distribution when wall mounted
• 7 selectable volume levels and up to 15 selectable tone pairs
• Onboard short circuit loop isolator
• Group addressing lets multiple devices operate together
• Low 550µA quiescent current
• IP55 rated for external areas where IP55 devices are deemed sufficient

Technical specifications

• VAD category: W-2.4-8.2
• Flash rate and colour: 0.5Hz; white
• Protocol: Apollo XP95/Discovery (C-TEC XFP/ZFP panels)
• Quiescent current: 550µA at 24V DC
• Indicators: polling (green LED) and short circuit isolator active (amber LED)
• Supply voltage: 17 to 28V DC (sounder); 21 to 28V DC (sounder/VAD)
• Nominal sound output: 103dB(A) (tone 1)
• Alarm current: 14mA at 24V DC (VAD lit, sounder on max)
• Dimensions: 114mm diameter x 131mm deep
• IP rating: IP55
• Weight: 315g
• Operating temperature: -10°C to +55°C, max 95% RH (non-condensing)
