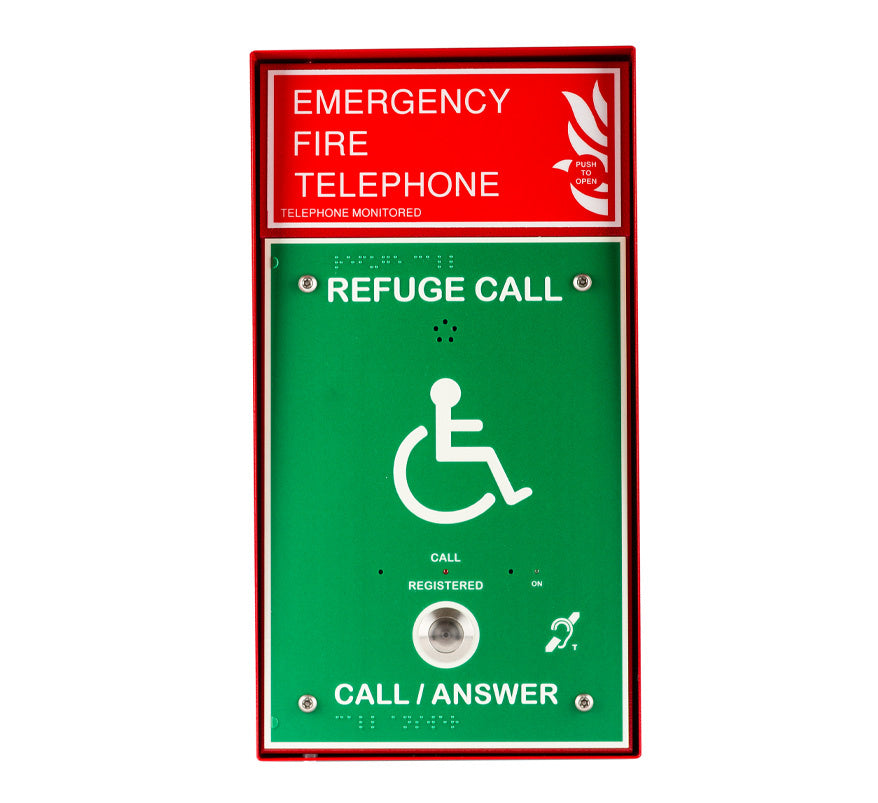

The Cameo CRT/GRS/R is a combined disabled refuge and fire telephone outstation (Type A and B) for radially wired Cameo disabled refuge and fire telephone systems. The surface-mounted enclosure is finished in red leatherette paint with a polycarbonate front label, with a green disabled refuge outstation built into the door and a red fire telephone handset inside. It gives firefighters and refuge users a direct, full-duplex voice link to the central control panel from a single location.
Key features
- Combined Type A fire telephone and Type B disabled refuge outstation in one enclosure
- Red handset with hearing aid T-coil output
- Integral audio frequency induction loop (AFILS) on the disabled refuge unit
- Lifting the handset or pressing the refuge call button calls the central control panel automatically
- Clear, full-duplex audio conversation
- Surface-mounted enclosure finished in red leatherette paint with a polycarbonate front label
- Green disabled refuge outstation combined into the door
Technical specifications
- Manufacturer code: CRT-GRS-R
- Type: fire telephone Type A and disabled refuge Type B
- Wiring: radially wired
- Mounting: surface
- Dimensions: 360mm (H) x 196mm (W) x 120mm (D) at top edge, 106mm (D) at bottom edge
