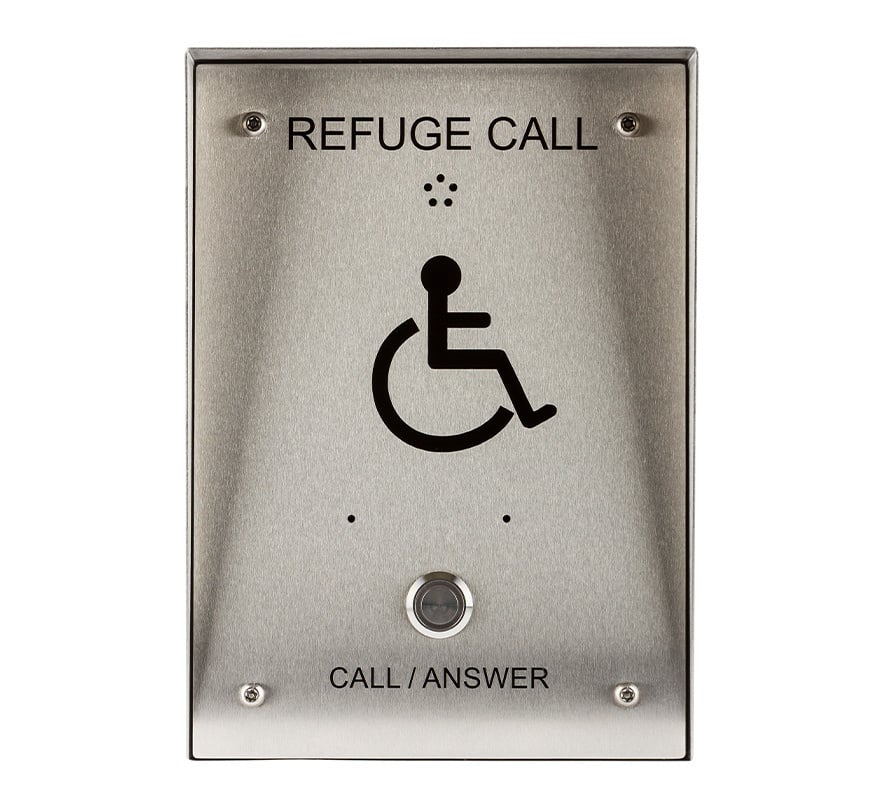

The Cameo RCO/WR/L is a Type B disabled refuge outstation: a surface-mounted, hands-free stainless steel unit with black screen print, for use with Cameo Orbital disabled refuge (emergency voice communication) systems. It is IP33 rated for use in covered outdoor spaces and is vandal resistant.
A call is made by pressing the large momentary push button, which lights the red switch ring to show the call is registered and starts a conventional telephone call tone from the panel loudspeaker. An integral audio frequency induction loop (AFILS) helps hearing aid users. This version is loop wired.
Key features
- Type B hands-free disabled refuge outstation
- Stainless steel front panel with black screen print
- IP33 rated for covered outdoor areas; vandal resistant
- Large momentary push button with red illuminated "call registered" ring
- Integral audio frequency induction loop (AFILS)
- Loop wired version; surface mount only
Technical specifications
- Type: Type B disabled refuge outstation (hands-free)
- Wiring: loop (RCO/WR/L)
- Ingress protection: IP33
- Mounting: surface only
- Dimensions: 265mm (H) x 190mm (W) x 90mm (D) at the top edge, 65mm (D) at the bottom edge
- Stainless panel: 260mm (H) x 185mm (W) x 1.5mm (D)
