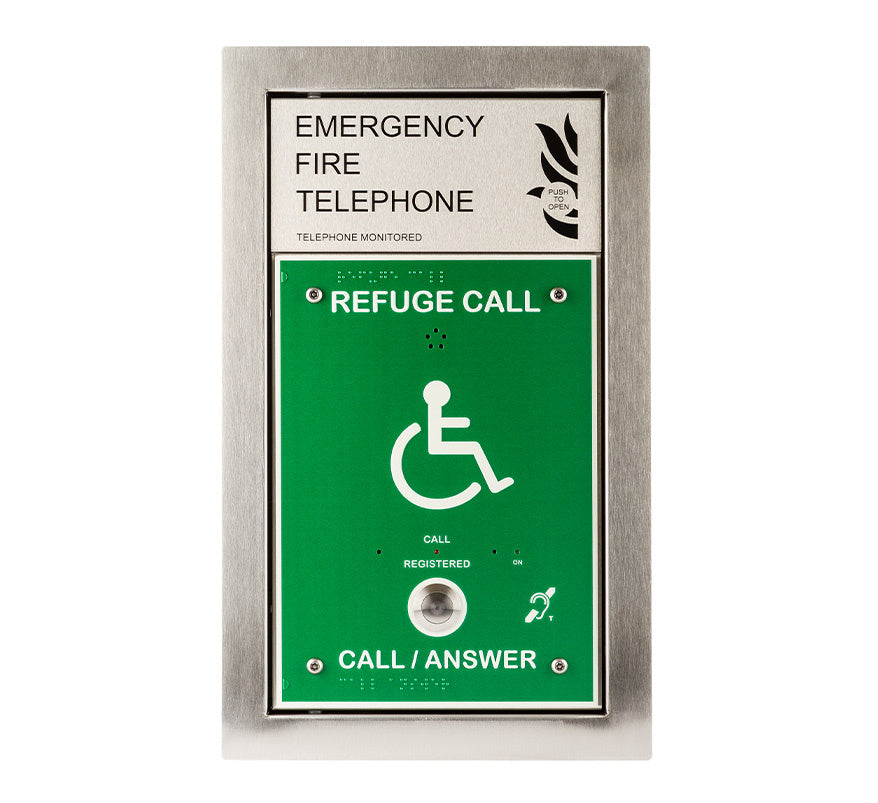

Cameo Combined Green Disabled Refuge & S/Steel Fire Telephone Outstation, Flush Mount - Loop Wired (CRT/GSF/L)

The Cameo CRT/GSF/L is a combined disabled refuge and fire telephone outstation (Type A and B) for loop-wired Cameo disabled refuge and fire telephone systems. The flush-mounted enclosure is finished in stainless steel with black screen print, with a green disabled refuge outstation built into the door and a red fire telephone handset inside. It gives firefighters and refuge users a direct, full-duplex voice link to the central control panel from a single location.

Key features

• Combined Type A fire telephone and Type B disabled refuge outstation in one enclosure
• Red handset with hearing aid T-coil output
• Integral audio frequency induction loop (AFILS) on the disabled refuge unit
• Lifting the handset or pressing the refuge call button calls the central control panel automatically
• Clear, full-duplex audio conversation
• Flush-mounted enclosure finished in stainless steel with black screen print
• Green disabled refuge outstation combined into the door

Technical specifications

• Manufacturer code: CRT-GSF-L
• Type: fire telephone Type A and disabled refuge Type B
• Wiring: loop-wired
• Mounting: flush
• Flange: 410mm (H) x 246mm (W) x 1.5mm (D)
• Back box: 360mm (H) x 196mm (W) x 106mm (D)
