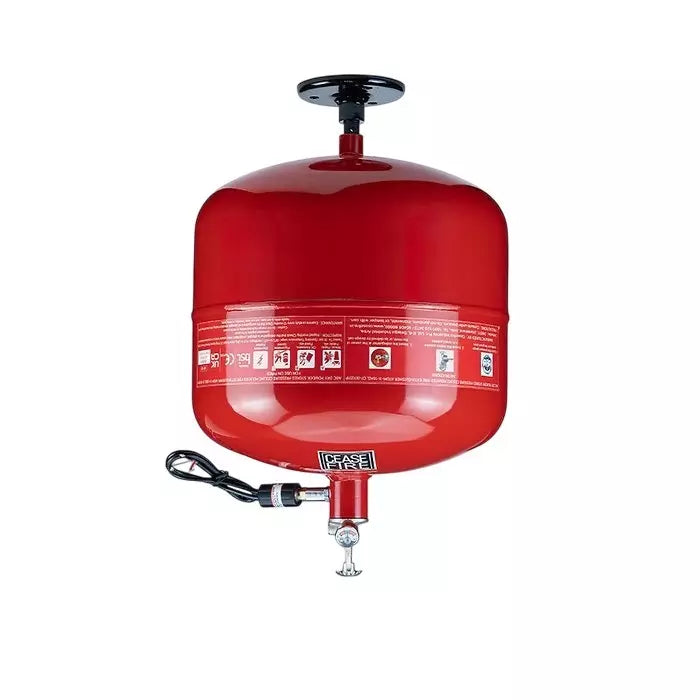

The Ceasefire CF-001490B is a 15kg ceiling mounted automatic extinguisher from the M-Series range, filled with ABC dry powder (MAP90) in a red mild steel cylinder. It is fitted with a sprinkler-style discharge head with a 68°C quartzoid bulb and a non-return valve (NRV). When the bulb reaches its rated temperature it breaks and the powder discharges automatically, even when nobody is present. Being ceiling mounted, it uses no floor space and is out of reach of tampering.
M-Series units can also be actuated electrically by adding an optional Metron actuator and connecting them to detectors via a control panel, so several units can work together as a total flooding system. They can also be made monitorable with an optional pressure switch linked to third-party devices.
Key features
- Automatic thermal actuation via a 68°C quartzoid bulb
- Optional electrical actuation with a Metron actuator
- Optional pressure switch monitoring
- MAP90 ABC dry powder for Class A, B, C and electrically started fires
- Retrofittable, with no network of pipes or ducts required
- 5 year warranty
Technical specifications
-
Product code: CF-001490B
-
Agent: ABC dry powder MAP90, stored pressure
-
Net contents: 15kg
-
Gross weight: Approx. 20.70kg
-
Height: Approx. 469mm
-
Shell diameter: 300mm
-
Actuation temperature: 68°C ±4°C
-
Discharge fitting: Sprinkler with quartzoid bulb head
-
Minimum discharge time: 12 to 18 seconds
-
Maximum spacing: 6.5m
-
Maximum coverage area: 37.5m²
-
Maximum ceiling height: 4m
-
Working pressure: 15 bar
-
Hydrostatic test pressure: 35 bar
-
Body thickness: 2mm
-
Operating temperature: -30°C to +60°C
-
Certification: PED, BSI tested, CE marked
