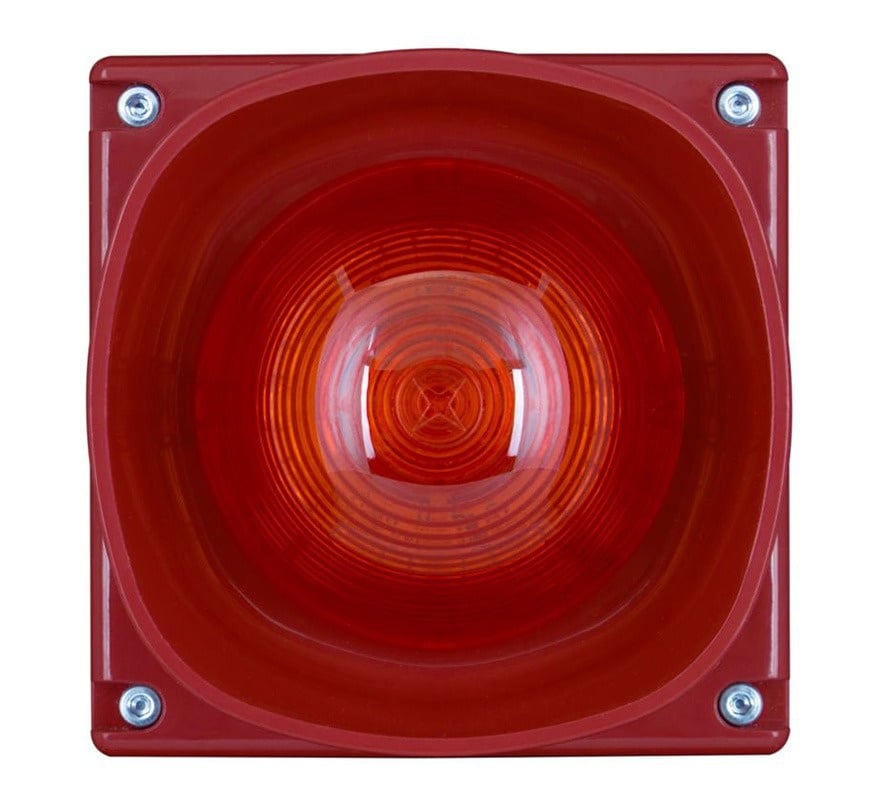

Eaton Cooper Intelligent Addressable Weatherproof Wall Sounder Beacon (CASB383-WP)

The Eaton Cooper CASB383-WP is the weatherproof version of the intelligent addressable wall sounder beacon, compatible with Eaton's Cooper range of intelligent addressable fire systems.

Rated IP66, it is suitable for external and wash-down areas. It combines a high-output sounder with a red LED beacon, and its tone and volume are set from the fire control panel. It is intended for indication purposes where EN 54-23 is not a requirement.

Key features

• IP66 weatherproof housing for outdoor and wash-down areas
• Loop powered and soft addressed, with an integral short circuit isolator
• High-efficiency sounder with low current consumption plus high-output LED beacon
• Selectable tones and adjustable volume, both controlled by the panel
• First-fix base; main body fastened to the base with 4 Allen head screws (supplied)
• Rear or side cable entry

Technical specifications

• Part number: CASB383-WP (weatherproof wall sounder beacon)
• Standards: EN 54-3; EN 54-17 short circuit isolator
• Operating voltage: 17 to 32 V DC
• Standby current: < 320 µA
• Sound output (±3 dB): low 92 dB at < 6.5 mA; medium 97 dB at < 7.5 mA; high 100 dB at < 8.5 mA
• Tones: continuous 984 Hz; pulsed 984 Hz at 1 Hz; two tone 644/984 Hz at 1 Hz; slow whoop 500 to 1200 Hz in 3.5 s / 0.5 s gap
• Operating temperature: -10°C to +55°C
• Humidity: 0 to 95% RH (non-condensing)
• Construction: PC/ABS, red body, red lens
• Dimensions (H x W x D): 108 x 108 x 103 mm
• Weight: 0.32 kg
• Ingress protection: IP66
• Cable: 0.5 to 2.5 mm², FIRETUF, FP200 or MICC
