The Eaton MDP201 duct mounting probe unit detects smoke in ventilation ducts. It is designed for use with Eaton's range of addressable and conventional optical smoke sensors and detectors.

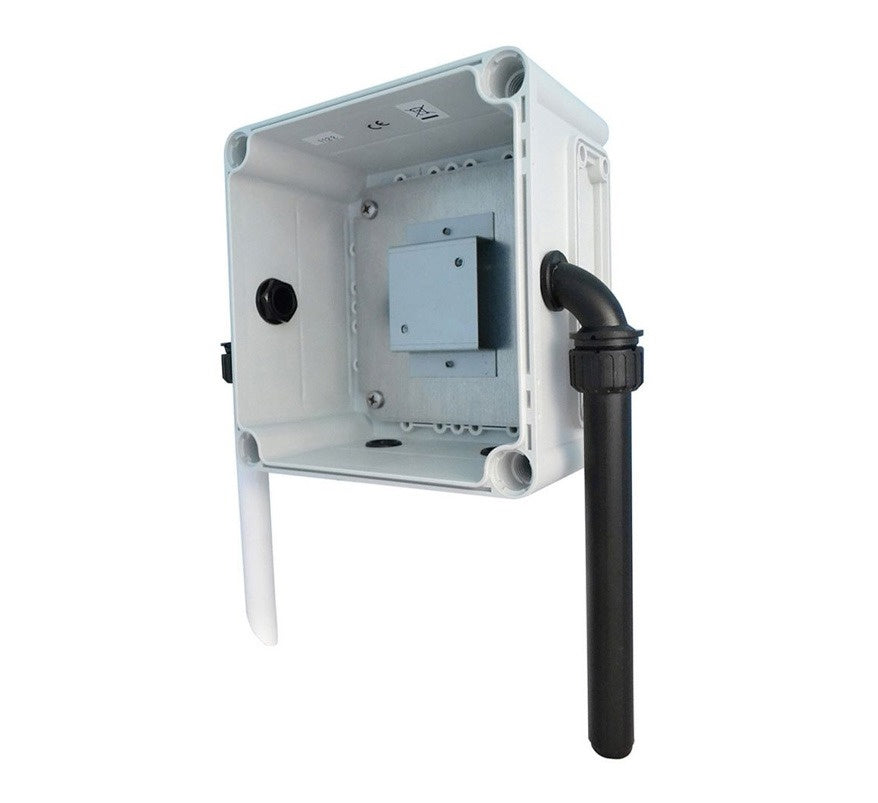

The sampling chamber mounts on the outside of the duct, with inlet and exhaust sampling tubes passing into the duct in an area of low turbulence. Air drawn through the chamber passes over the smoke detector fitted inside, so smoke travelling through the ventilation system is detected. The detector and base are ordered separately.
Key features
- Works with Eaton addressable optical smoke sensors (e.g. CAP320 with CAB300 base) and conventional optical detectors (e.g. CPD321 or FXN922 with CDBB300 base)
- Two sampling tubes (inlet and exhaust) for continuous air sampling
- Test hole with plug on the exhaust side, so the detector can be smoke tested without removing the lid
- IP67 rated sampling chamber
- Supplied with full fixing instructions
Technical specifications
-
Catalogue number: MDP201
-
Duct width range: 300mm to 1500mm
-
Duct air speed range: 1m/s to 20m/s
-
Temperature range: -20°C to +60°C
-
Ingress protection: IP67
-
Dimensions (L x W x H): 135 x 190 x 190mm
-
Weight: 1.071kg
-
Cable entry: 20mm
-
Detector and base: Not included, order separately
