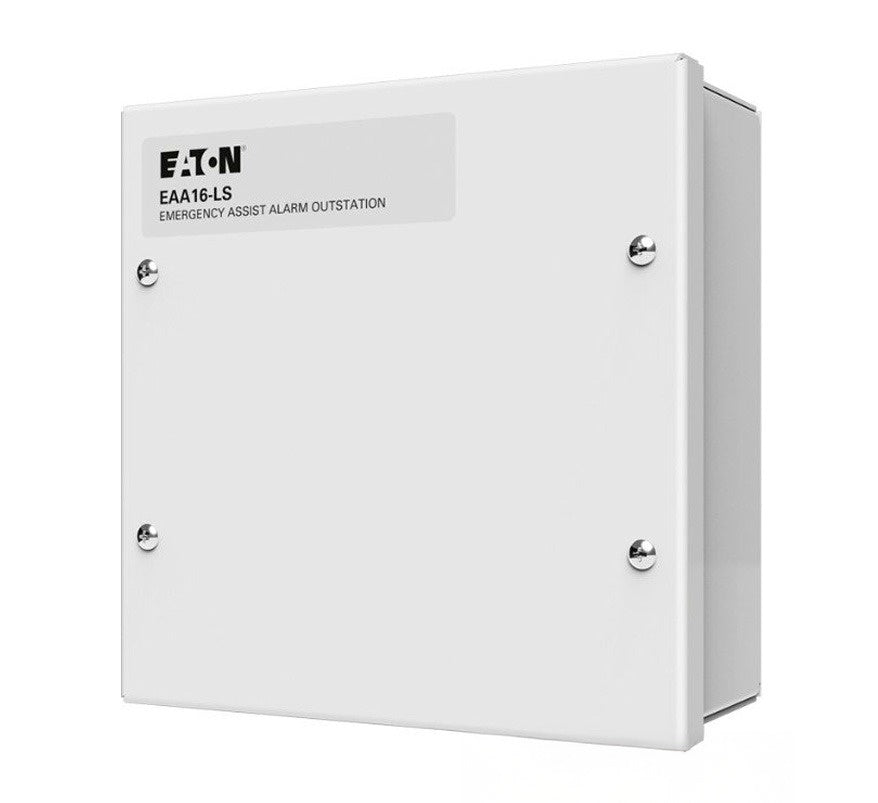

The Eaton VoCALL 16 EAA16-LS is a digital Emergency Assist Alarm (EAA) outstation for the VoCALL 16 digital emergency voice communication system. It brings disabled toilet and emergency assistance alarms onto the VoCALL 16 loop, so assistance calls are reported at the VoCALL 16 panel.
Like the other VoCALL 16 digital outstations, it connects on the 4 core loop in any order with Type A and Type B outstations. The VoCALL 16 panel provides an Emergency Assist interface for disabled toilet alarms with a reassurance function.
Key features
- Emergency Assist Alarm outstation for VoCALL 16 (MX16/NX16) systems
- Connects on the VoCALL 16 4 core loop with other digital outstations
- Works with the panel's Emergency Assist interface and reassurance function
Technical specifications
-
Catalogue number: EAA16-LS
-
Power consumption: 0.65W
-
Dimensions (H x W x D): 132 x 132 x 57mm
-
Weight: 0.6kg
-
Operating temperature: -5°C to +40°C
-
Humidity: 0 to 95%, non-condensing
-
Ingress protection: IP3X
