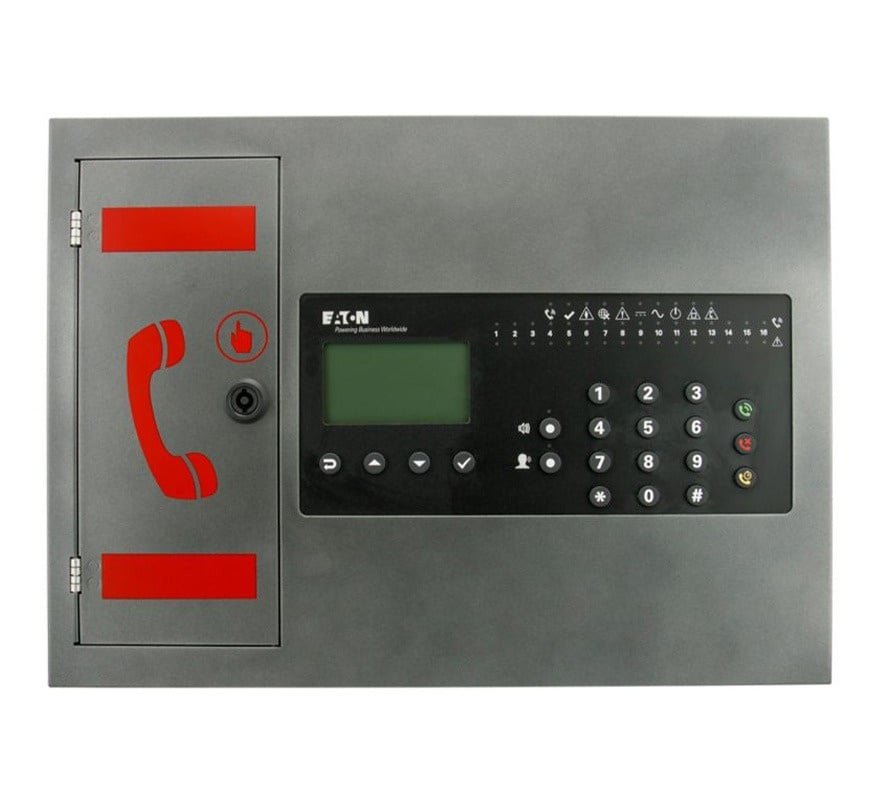

Eaton VoCALL 16 Digital EVCS 16 Line Master Control Panel (MX16)

The Eaton VoCALL 16 MX16 is the master control panel for the VoCALL 16 digital, loop-driven emergency voice communication system (EVCS). It connects up to 16 soft-addressed digital outstations, in any combination of Type A, Type B and Emergency Assist Alarm, on a single 4 core loop.

Loop wiring with short circuit isolators makes the system fault tolerant, and digital audio gives clear, intelligible speech. A large graphical display, tactile keypad and PIN-protected access levels make it simple to operate, even with gloved hands, and time-stamped logs are stored on SD card. It is fully compliant with BS 5839-9 and can be networked with NX16 panels and DAX8 exchanges.

Key features

• Up to 16 digital outstations per panel on a 4 core loop
• Soft addressing of outstations
• Fault tolerant loop with integral short circuit isolators
• Digital audio with automatic volume control
• Large 100 x 40mm graphical display with adjustable brightness
• PIN-protected User, Manager and Engineer access levels; up to 10 user accounts
• Bi-directional calls; loud-speak and listen-in with Type B outstations
• Emergency Assist interface for disabled toilet alarms
• Extensive time-stamped logs on SD card
• Key-operated lockable hinged door; flush mounting options (MX16-SSC, MX16-BEZ)

Technical specifications

• Catalogue number: MX16
• Mains supply: 230V AC +/- 10%, 50/60Hz
• Batteries: 2 x 12V 12Ah recommended (not supplied)
• Panel power consumption: 2.7W
• Capacity: Up to 16 outstations
• Loop: 4 core 1.5mm²; up to 200m between outstations, 2000m total
• Dimensions (H x W x D): 355 x 487 x 158mm
• Weight: 6.7kg (without batteries)
• Operating temperature: -5°C to +40°C
• Humidity: 0 to 95%, non-condensing
• Ingress protection: IP3X
• Standards: BS 5839-9; EN 54-4 (power supply); EN 55032, EN 55035
