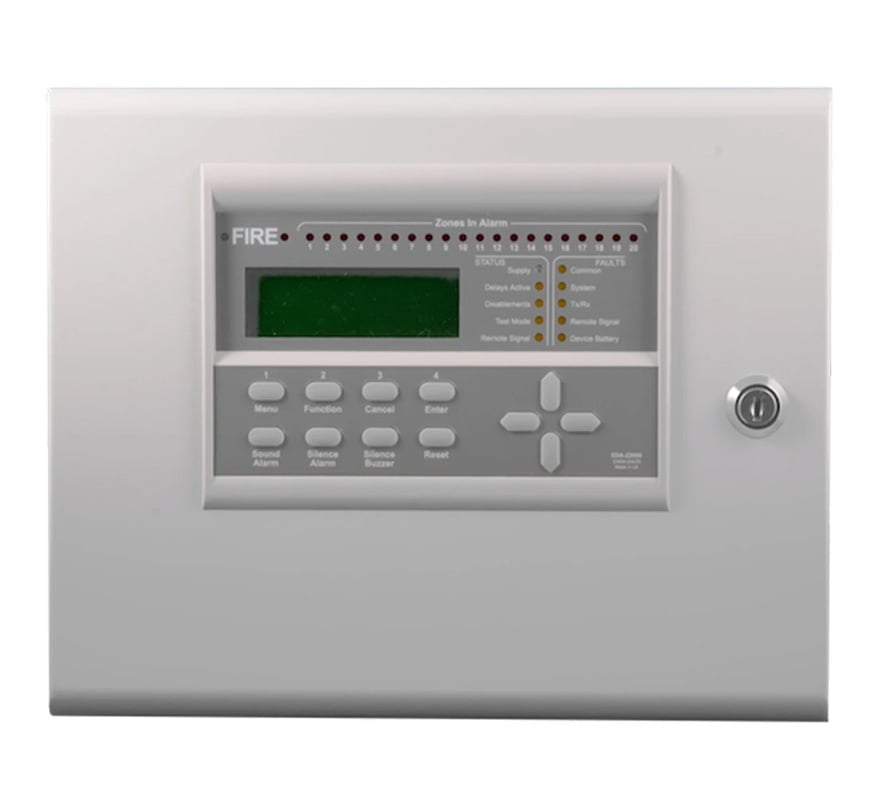

The Electro Detectors EDA-Z5008SZ is an 8 zone wired remote display in a standard enclosure for the Zerio Plus radio fire alarm system. It connects to the RS485 terminals of a Zerio Plus control or booster panel to give a secondary display point elsewhere in the building.
Key features
- 8 zone remote display for Zerio Plus control panels
- Standard enclosure version (stainless steel flush and surface versions are also listed by the manufacturer as EDA-Z5008FS and EDA-Z5008SS)
- Wired over RS485 using data cable with 2 twisted pairs
- Two RS485 connectors, so up to 4 wired units can be chained
Technical specifications
- Connection: RS485, 2 twisted pairs (Cat 5/5e/6 can be used but is not fire rated)
- Chain length: up to 4 wired units per chain, 100Ω resistor across D- and D+ on the last unit
- Panel RS485 port supply: 500mA at 15V
- Compatible with: Zerio Plus EDA-Z5008, Z5020 and Z5100 panels
