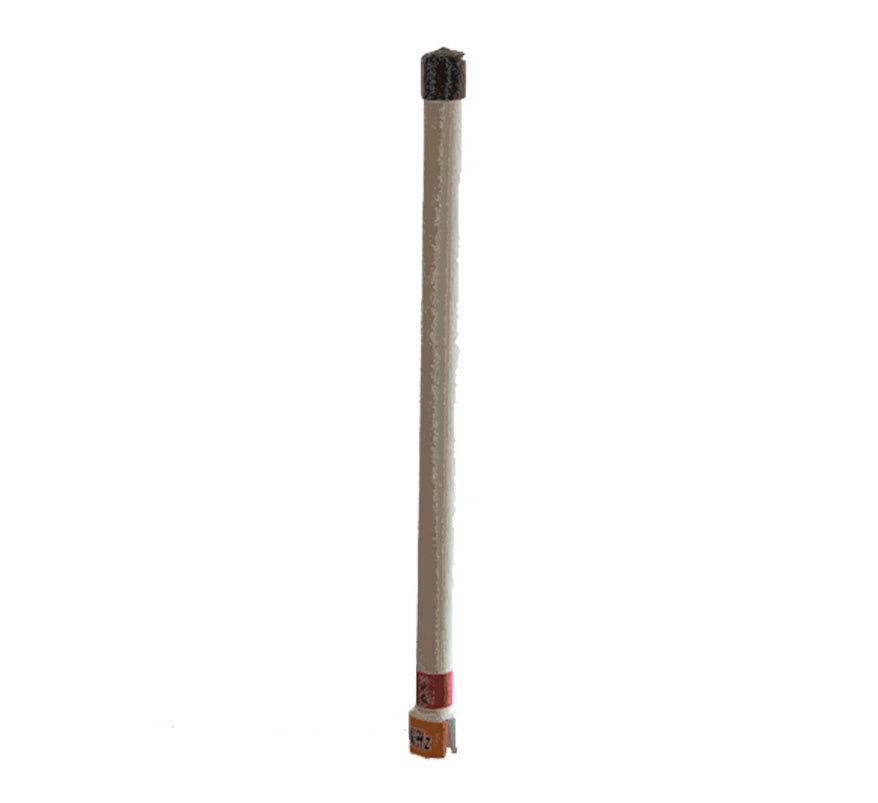

The Electro Detectors EDA-Y5000 is a weatherproof dipole antenna for Zerio Plus radio fire alarm control panels. It replaces the standard stub antenna where a remote, high-gain antenna is needed to improve radio coverage, and connects to the panel processor board with a 50Ω SMA connector on RG58 C/U coaxial cable.
Key features
- Weatherproof dipole antenna for Zerio Plus panels
- Replaces the panel's standard helical stub antenna and bracket
- Selected in the panel settings as antenna type 'Dipole'
- Cable runs should follow the relevant parts of BS 5839 and EN 54
Technical specifications
- Part number: EDA-Y5000
- Type: dipole, weatherproof
- Connection: 50Ω SMA connector
- Cable: RG58 C/U coaxial
- Compatible with: Zerio Plus control panels (EDA-Z5008, Z5020, Z5100)
- Note: the manufacturer states the stub antenna setting is the type-approved configuration
