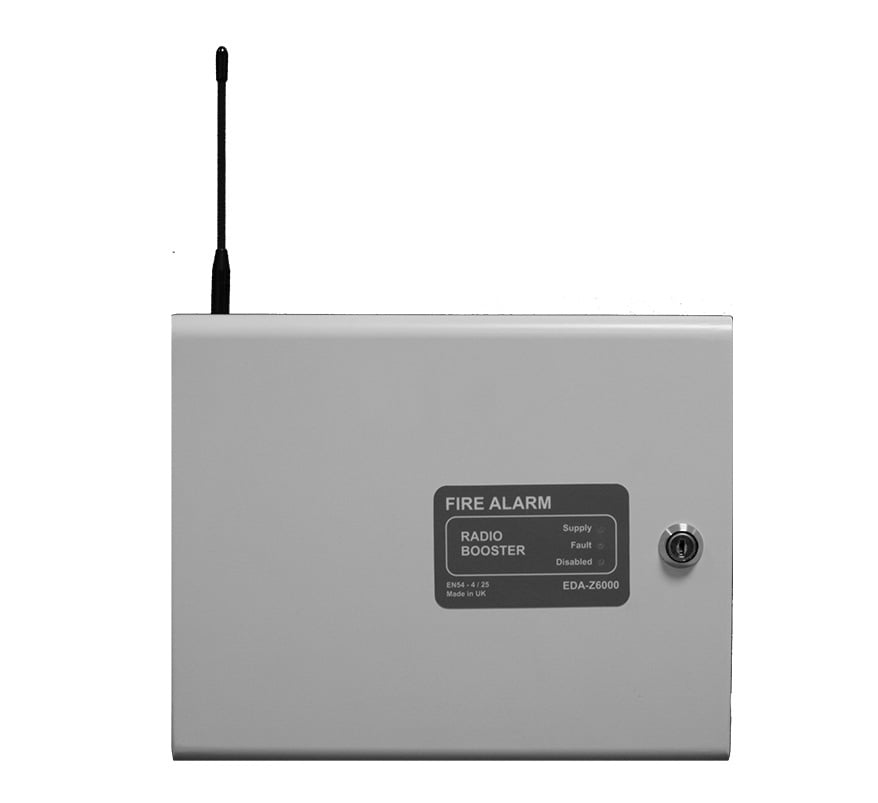

The Electro Detectors EDA-Z6000 is a radio booster panel with I/O for the Zerio Plus wireless fire alarm system. Booster (repeater) panels extend the radio range of a system; they are placed in positions found in the radio survey and set up automatically by the main control panel.
Key features
- Extends the radio range of a Zerio Plus system
- Radio booster panel with I/O
- Boosters can talk to the main panel directly or 'hop' through other boosters (up to 4 hops)
- Auto-configure and auto-assign devices to the panel or antenna with the strongest signal
- RS485 ports for wired antennas and remote displays
Technical specifications
- Part number: EDA-Z6000
- Maximum repeater/booster panels per system: 7
- Maximum network hops: 4
- RS485 port supply: 500mA at 15V
- Compatible with: Zerio Plus EDA-Z5008, Z5020 and Z5100 control panels
