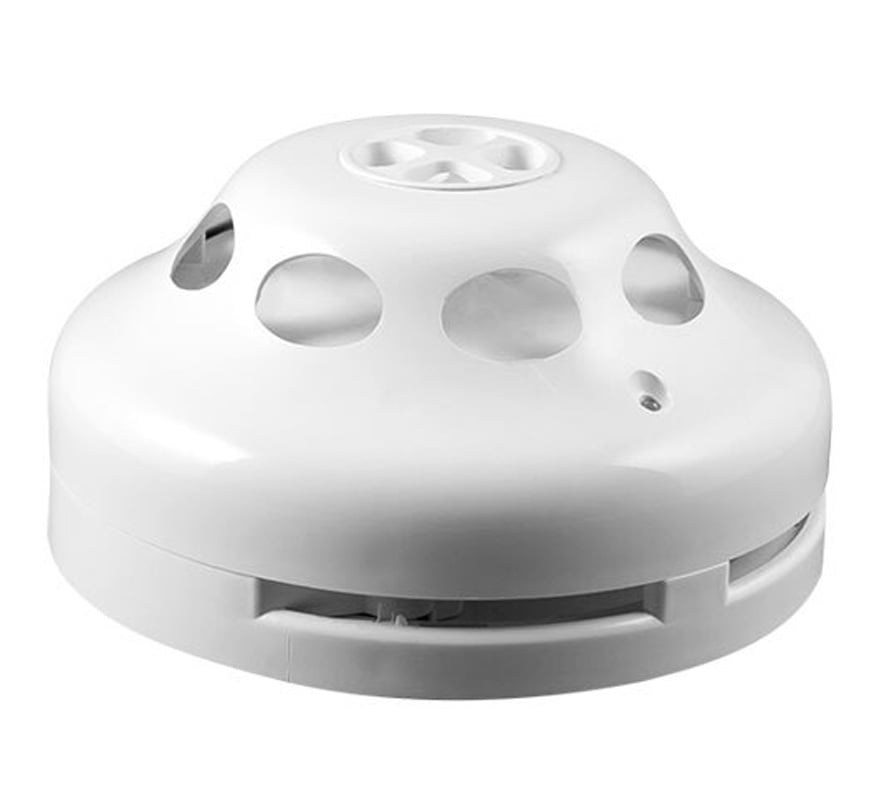

Electro Detectors Zerio Plus Wireless Heat Detector with Sounder (EDA-D6000)

The Electro Detectors EDA-D6000 is a radio combined heat detector and sounder for the Zerio Plus wireless fire alarm system. It is type tested as an A1S heat detector and can be programmed from the control panel to work as A1R, rate-of-rise or fixed-point. It shares a common base with, and is interchangeable with, other Zerio Plus detectors.

Key features

• EN 54 Parts 3, 5 and 25 compliant
• Programmable heat response: A1S, A1R, rate of rise or fixed point (50 to 99°C)
• Built-in high output sounder with 16 tones, selectable at the control panel
• Fully addressable; unique serial number and time in service stored in non-volatile memory
• Battery life of up to 4 years
• Optional lockable head (locking screw EDA-Q580 sold separately)
• Compatible with Zerio Plus panels

Technical specifications

• Power: 4 AA lithium thionyl chloride cells (2 x EDA-Q690 battery packs)
• Sounder output: 83 to 93dB at 1m (depending on orientation)
• Current: 60mA max in alarm, approx. 250µA average
• Radio frequency: 868MHz, narrow band FM, 13 channels
• Operating temperature: 0 to +60°C; humidity 0 to 95% (non-condensing)
• IP rating: IP21C
• Dimensions (including base): 115mm diameter x 65mm high
• Weight (including base): approx. 300g
• Fixing: 2 x 4mm holes (No. 6 screws), 50mm spacing
• Finish: white polished UV-stabilised flame retardant ABS
