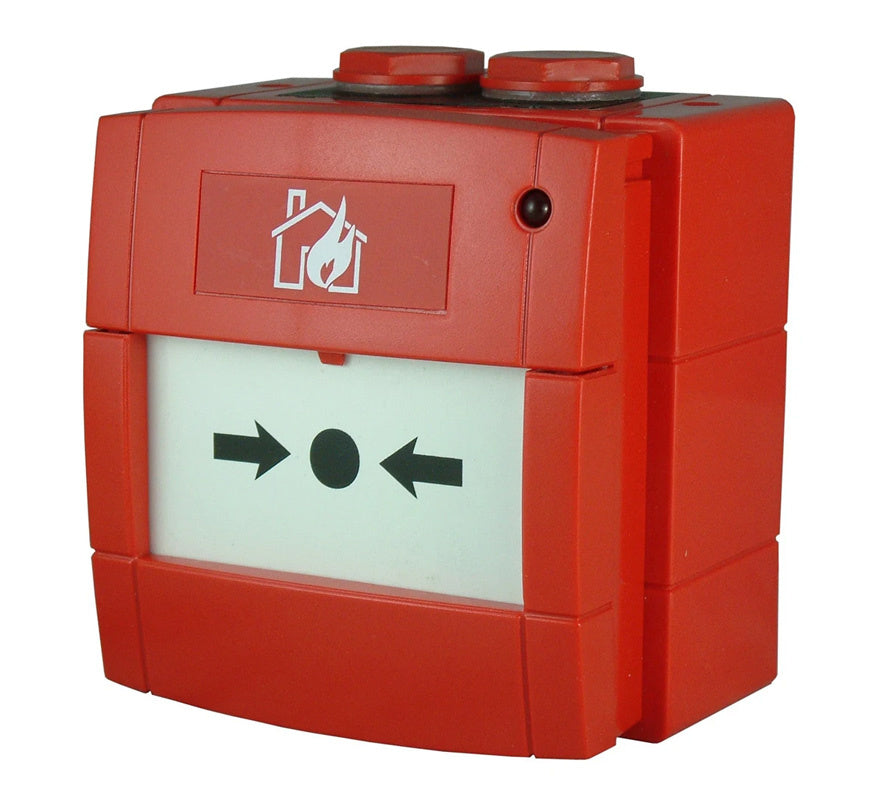

The Electro Detectors EDA-C5040 is an IP65-rated radio manual call point (break glass unit) for the Zerio Plus wireless fire alarm system. It is fully addressable, battery powered and communicates with Zerio Plus control panels by radio, and its IP65 rating makes it suitable for wet or exposed locations. It complies with the relevant sections of BS 5839 and EN 54, including Part 25 for radio-linked components.
Key features
- IP65 rated for weatherproof installations
- EN 54 Parts 11 and 25
- Fully addressable; unique serial number and time in service stored in non-volatile memory
- Battery life of up to 5 years with continual monitoring and self-testing
- High intensity LED: solid red in alarm, flashing red in fault; audible warning in alarm and test mode
- Compatible with Zerio Plus control panels
- Mounts with just two screws
Technical specifications
- Power: 2 independent AA lithium cells (1 x EDA-Q690 battery pack)
- Battery life: up to 5 years (manufacturer's estimate)
- Radio frequency: 868MHz, narrow band FM, 13 channels
- Operating temperature: 0 to +60°C
- Humidity: 0 to 95% (non-condensing)
- Dimensions (including base): 95mm wide x 70mm deep
- Weight (including base): approx. 250g
- Fixing: 2 x 4mm holes (No. 6 screws), 60mm spacing on vertical centre
- Casing: injection moulded UV-stabilised ABS, red polished finish
What's in the box
- Call point
- Mounting box
- Battery
