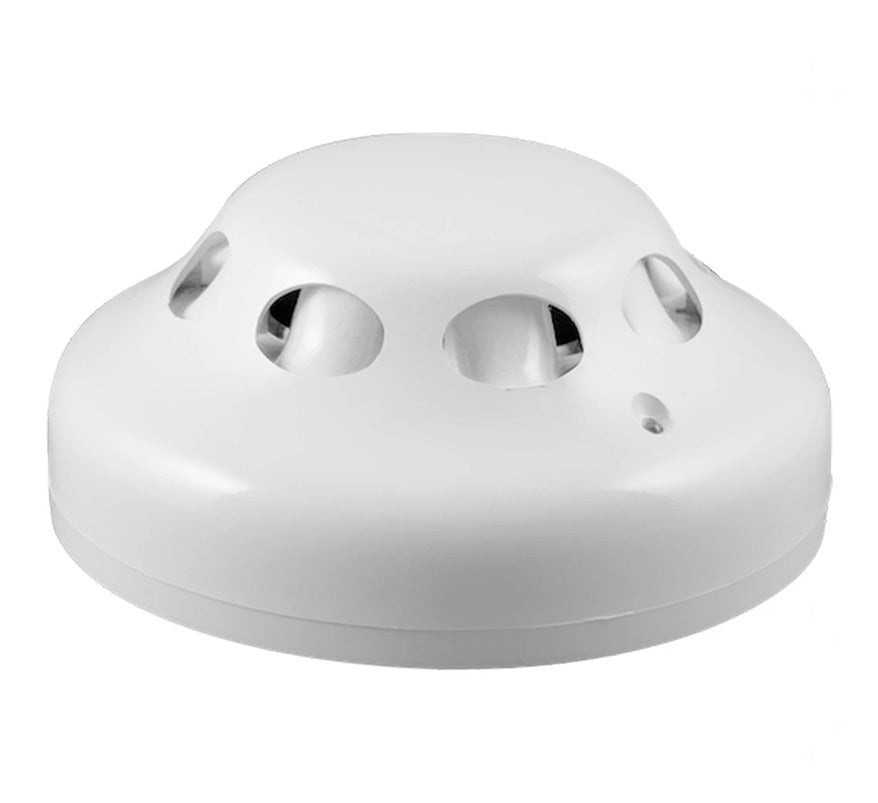

Electro Detectors Zerio Plus Wireless Optical Smoke Detector (EDA-R5000)

The Electro Detectors Zerio Plus EDA-R5000 is a radio (wireless) optical smoke detector for the Zerio Plus wireless fire alarm system. Housed in a low-profile moulding based on the Millennium and Zerio ranges, it is supplied complete with its base and battery and needs just two screws to mount on the ceiling.

Zerio Plus is Electro Detectors' EN 54 certified radio (wireless) fire alarm system, designed and manufactured in Harlow, Essex. It supports up to 240 fully addressable devices per system.

Key features

• Fully addressable, configured by radio from the Zerio Plus panel
• Programmable sensitivity
• Pre-alarm and head dirty warnings
• Sensor re-calibration and self-testing to minimise maintenance
• Up to 5 year battery life
• Lockable head option (EDA-Q580 locking screws)
• Unique serial number and time in service stored in non-volatile memory

Technical specifications

• Part number: EDA-R5000
• Detector type: Optical smoke
• Sensitivity: High 0.08dB/m, medium 0.12dB/m, low 0.20dB/m
• Power source: 1 x EDA-Q690 dual lithium battery pack
• Battery life: Up to 5 years
• Dimensions (including base): 115mm diameter x 45mm high
• Weight (including base): Approx. 200g
• Operating temperature: 0°C to +60°C
• Humidity: 0 to 95%, non-condensing
• Ingress protection: IP21C, indoor use only
• Standards: EN 54-7 and EN 54-25

What's in the box

• Detector with base
• Battery pack
