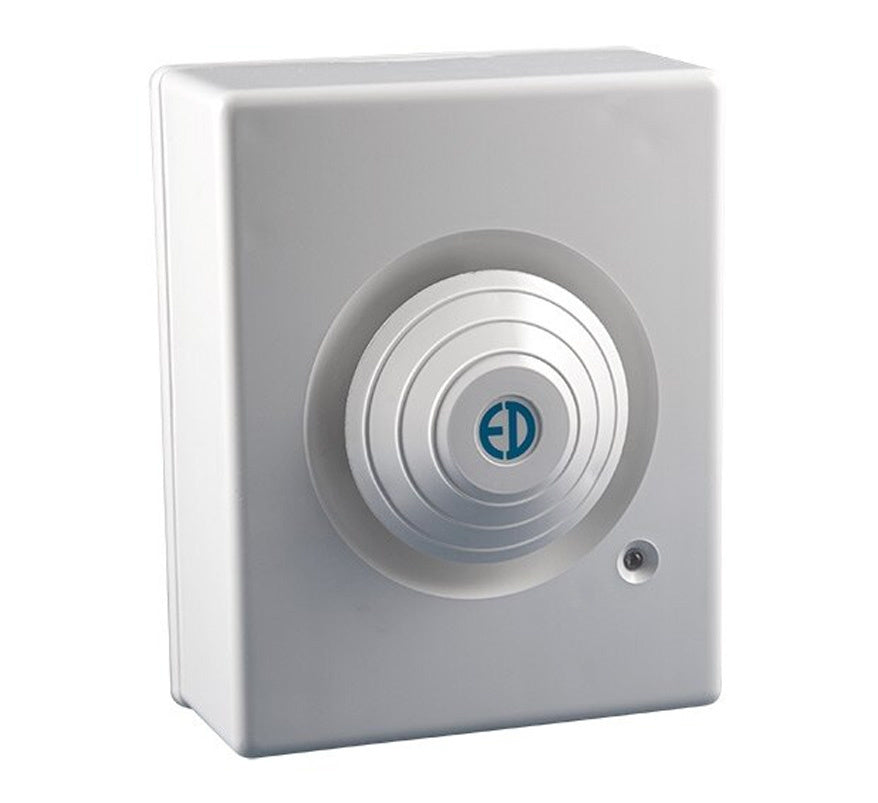

Electro Detectors Zerio Plus Wireless Sounder (EDA-A6000)

The Electro Detectors Zerio Plus EDA-A6000 is a radio (wireless) electronic sounder for the Zerio Plus wireless fire alarm system. Powered entirely by internal batteries and controlled and monitored by radio, it produces a sound level equivalent to a normal hard-wired electronic sounder.

Zerio Plus is Electro Detectors' EN 54 certified radio (wireless) fire alarm system, designed and manufactured in Harlow, Essex. It supports up to 240 fully addressable devices per system.

Key features

• Up to 105dB at 1m (adjustable)
• Selectable tones controlled from the panel
• Fully addressable and assignable to an area, allowing phased evacuation
• Regular transmissions to the panel so that loss of signal is reported as a fault; also reports removal, low battery and receiver failure
• Up to 5 year battery life

Technical specifications

• Part number: EDA-A6000
• Sound output: Up to 105dB at 1m, adjustable
• Power source: 3 x EDA-Q690 dual lithium battery packs
• Battery life: Up to 5 years (normal use)
• Dimensions (including base): 145 x 115 x 70mm (H x W x D)
• Weight (including base): Approx. 200g
• Operating temperature: 0°C to +60°C
• Humidity: 0 to 95%, non-condensing
• Standards: EN 54-25
