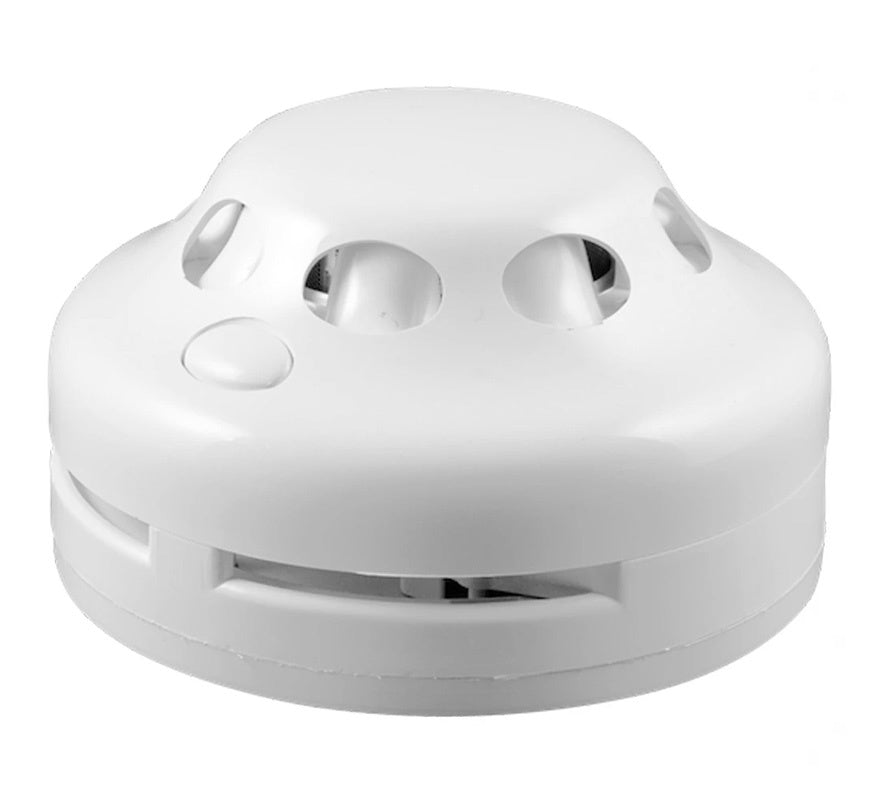

Electro Detectors Zerio Plus Wireless Optical Smoke Detector with Sounder (EDA-R6000)

The Electro Detectors Zerio Plus EDA-R6000 is a radio (wireless) combined optical smoke detector and sounder for the Zerio Plus wireless fire alarm system. It shares a common fixing with, and is interchangeable with, other Zerio Plus detectors, and its sounder tones can be changed from the control panel.

Zerio Plus is Electro Detectors' EN 54 certified radio (wireless) fire alarm system, designed and manufactured in Harlow, Essex. It supports up to 240 fully addressable devices per system.

Key features

• Fully addressable, configured by radio from the Zerio Plus panel
• Selectable smoke sensitivity (high, medium or low)
• Integral sounder, 80dB at 1m, with 16 tones
• Pre-alarm and head dirty warnings
• Up to 4 year battery life
• Lockable head option (EDA-Q580 locking screws)
• Unique serial number and time in service stored in non-volatile memory

Technical specifications

• Part number: EDA-R6000
• Detector type: Optical smoke
• Sensitivity: High 0.08dB/m, medium 0.12dB/m, low 0.20dB/m
• Sound output: 80dB at 1m
• Power source: 2 x EDA-Q690 dual lithium battery packs
• Battery life: Up to 4 years
• Dimensions (including base): 115mm diameter x 65mm high
• Weight (including base): Approx. 310g
• Operating temperature: 0°C to +60°C
• Humidity: 0 to 95%, non-condensing
• Ingress protection: IP21C, indoor use only
• Standards: EN 54-3, EN 54-7 and EN 54-25
