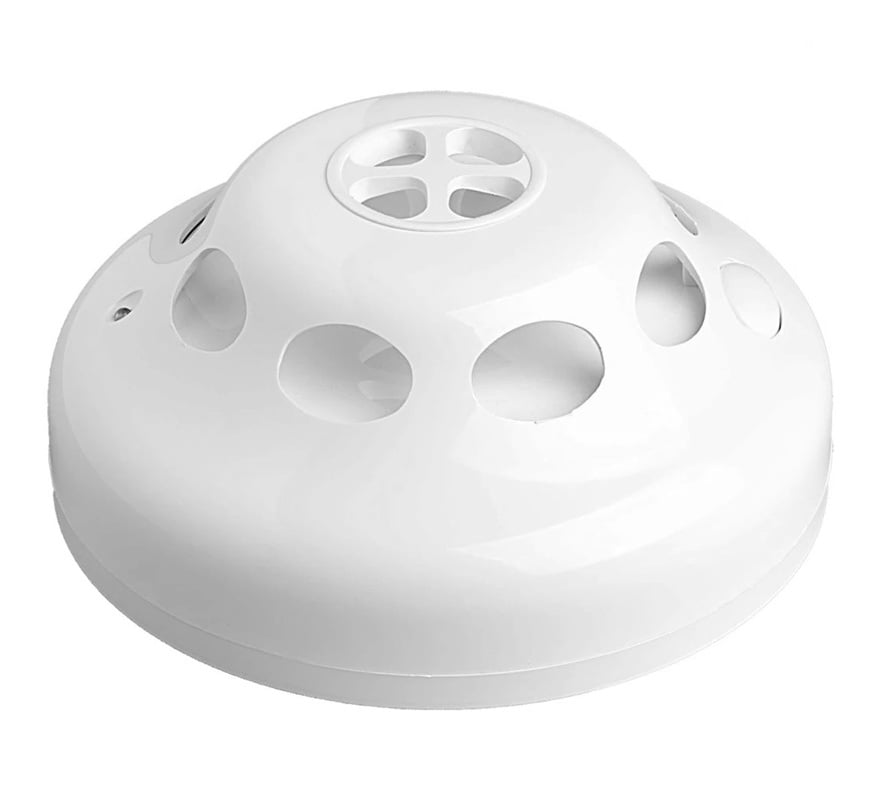

Electro Detectors Zerio Plus Wireless Heat Detector (EDA-D5000)

The Electro Detectors Zerio Plus EDA-D5000 is a radio (wireless) heat detector for the Zerio Plus wireless fire alarm system. The panel sets whether it operates as a Class A1S or A1R detector, or as a fixed point or rate-of-rise detector with an operator-set alarm temperature or sensitivity. It is supplied complete with its base and battery.

Zerio Plus is Electro Detectors' EN 54 certified radio (wireless) fire alarm system, designed and manufactured in Harlow, Essex. It supports up to 240 fully addressable devices per system.

Key features

• Programmable detection type: A1S (third-party approved to EN 54-5), A1R, fixed point or rate of rise
• Fully addressable, configured from the Zerio Plus panel
• Up to 5 year battery life
• Lockable head option (EDA-Q580 locking screws)
• Unique serial number and time in service stored in non-volatile memory

Technical specifications

• Part number: EDA-D5000
• Power source: 1 x EDA-Q690 dual lithium battery pack
• Battery life: Up to 5 years
• Dimensions (including base): 115mm diameter x 45mm high
• Weight (including base): Approx. 150g
• Operating temperature: 0°C to +60°C
• Humidity: 0 to 95%, non-condensing
• Ingress protection: IP21C, indoor use only
• Standards: EN 54-5 and EN 54-25

What's in the box

• Detector with base
• Battery pack
