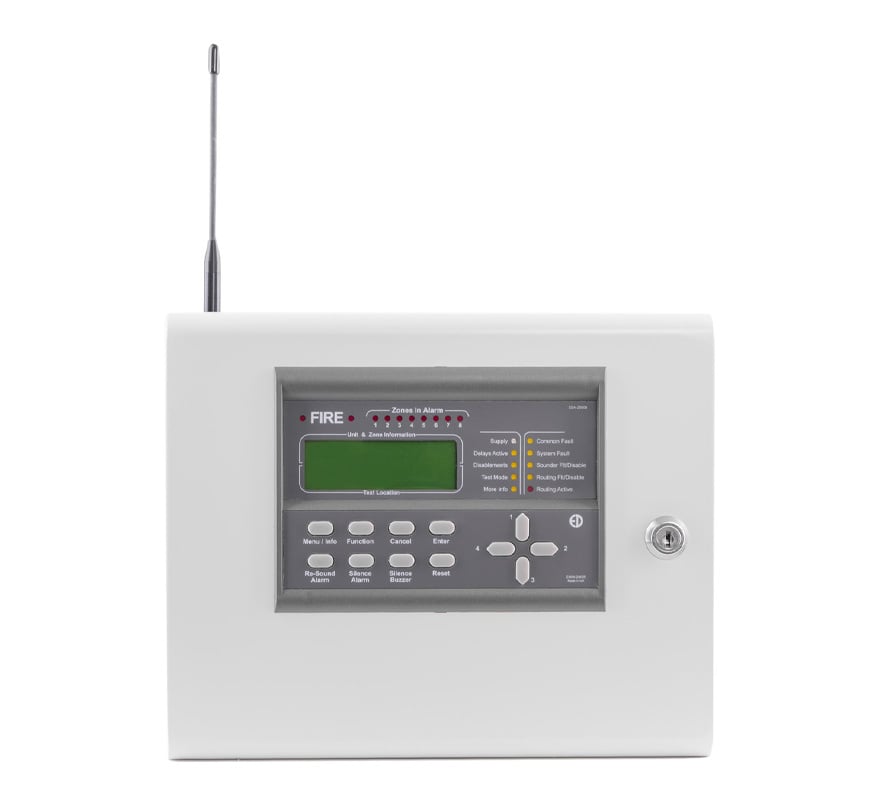

Electro Detectors Zerio Plus 8 Zone Wireless Fire Control Panel (EDA-Z5008)

The Electro Detectors Zerio Plus EDA-Z5008 is an 8 zone radio (wireless) fire alarm control panel for commercial or residential premises. It replaces the Millennium and Zerio series, combining the features of both, and is used to set up, program and commission the whole system without additional programming equipment.

Zerio Plus is Electro Detectors' EN 54 certified radio (wireless) fire alarm system, designed and manufactured in Harlow, Essex. It supports up to 240 fully addressable devices per system.

Key features

• Up to 240 fully addressable devices (detectors, call points, transmitters, sounders and I/O units)
• Up to 7 radio boosters and 7 wired transceivers to extend range
• Automatic set-up and learn modes
• Complex cause and effect, programmed from the keypad, a USB keyboard or a USB memory stick
• Configuration backed up to a removable memory card
• Pre-alarm and head dirty warnings
• Built-in HMO options
• 4 line backlit LCD with 60 scrolling characters of location text
• 5 access levels; 255 event log
• 4 programmable relays: fire routing (12V 500mA), fire (1A changeover), fault (1A failsafe changeover) and 12V sounder circuit (500mA)
• 2 hard-wired monitored inputs

Technical specifications

• Part number: EDA-Z5008
• Zones: 8
• Devices: Up to 240
• Mains supply: 230V 50Hz, 0.3A max
• Battery: 1 x 12V 7Ah sealed lead acid for 72 hours standby (no external load)
• Radio: 868MHz NBFM, 10mW ERP
• Dimensions: 275 x 220 x 85mm (W x H x D)
• Weight: 4kg without battery
• Operating temperature: 0°C to +60°C
• Standards: EN 54-2, EN 54-4 and EN 54-25; BS 5839-1
