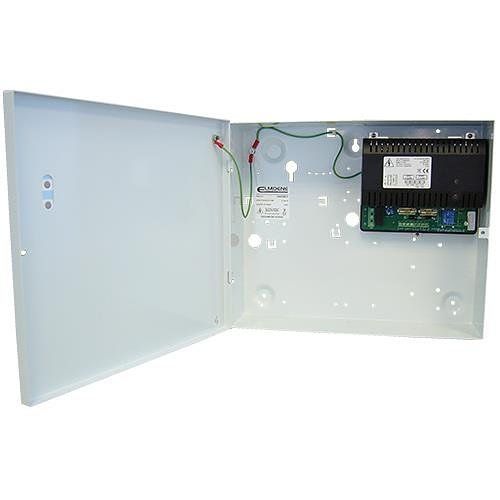

Name: Elmdene G2401BM-C Switch Mode Power Supply Unit with Battery Monitoring, 24V DC 1A, H275xW330xD80mm
Brand: Elmdene by Potter
SKU: G2401BM-C
Price: 76.90 GBP
Availability: InStock

Elmdene G2401BM-C Switch Mode Power Supply Unit with Battery Monitoring, 24V DC 1A, H275xW330xD80mm

Roll over image to zoom in Click on image to zoom

24V Switch Mode PSU (27.6V) 1Amp to load + 0.5A battery charging. Efficient Switch Mode operation. Mains and Battery monitoring with independent volt free fault outputs. Deep discarge protection. Multi LED status indication. Fit up to 2x7Ah battery.

Main Features

1Amp To Load + 0.5A Battery Charging
24V Switch Mode PSU (27.6V)
Efficient Switch Mode operation
Mains and Battery monitoring with independent volt free fault outputs
Deep discharge protection
Multi LED status indication
Fit up to 2x7Ah battery
'C' Box: 275h x 330w x 80d
Hinge lid
27.6V dc output

Specifications

Amperage	1.00A
Compatibility	Fire And Access Control
Depth	80.00mm
Environmentally Friendly	Yes
Form Factor	Enclosure
Height	275.00mm
Input Voltage	120V AC; 230V AC
Limited Warranty	Lifetime
Output Current	1.0000A
Output Voltage	24V DC
Product Line	G Range
Product Series	BM
Product Type	Power Supply
Width	330.00mm
Manufacturer	Potter Electric Signal, LLC
Modular	Yes
RoHS Compliant	Compliant
WEEE Compliant	Compliant
