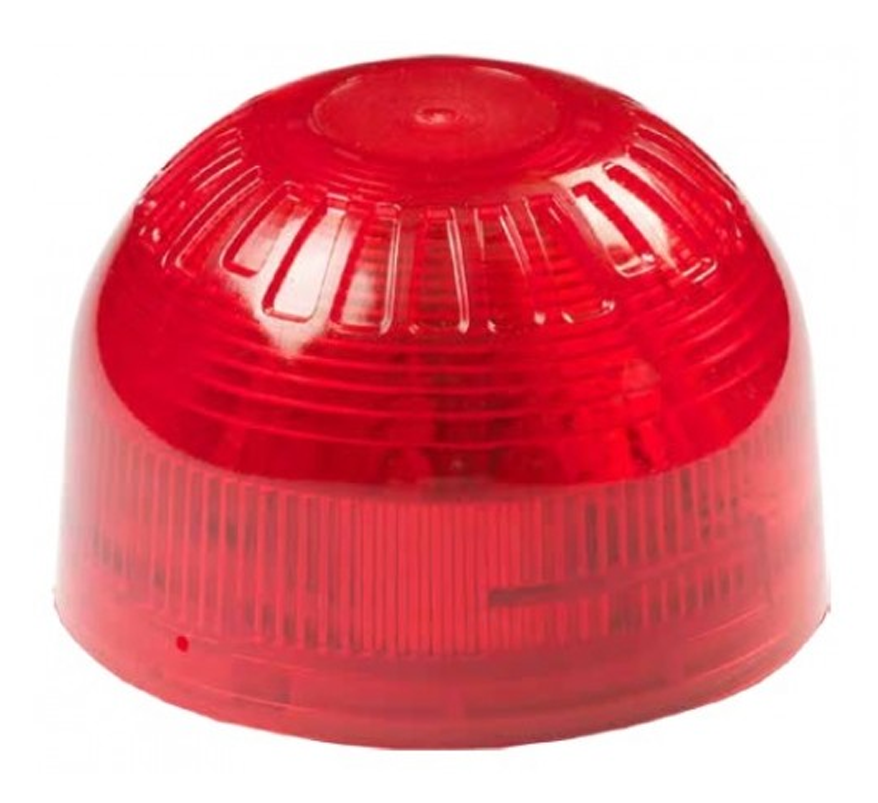

The EMS FireCell Red Visual Indicator (FC-178-002) is a red fire alarm visual indicating device (VID) head for FireCell and Fusion wireless systems. It fits the red FireCell wireless sounder base (FC-171-002, sold separately) with a simple turn-and-lock action; the base provides the radio link and batteries and gives the device its address at the control panel.
Key features
- Red visual indicating device head only
- Fits the FC-171-002 red wireless sounder base
- Simple turn and lock installation; can be locked into the wireless module
- Self-test fault monitoring
- Individual and group addressing
Technical specifications
- Part number: FC-178-002
- Compatible base: FC-171-002 red wireless sounder base (sold separately)
- Power: from the wireless base; operating voltage 2.8 to 5 VDC
- Wireless frequency (via base): 868 MHz
- Dimensions (without base): 104 mm diameter x 97.5 mm height
- Weight (without base): 205 g
- Colour: red
- Operating temperature: -10 to 55 °C; storage: 5 to 30 °C
- Relative humidity: below 95% non-condensing
- IP rating: IP54, indoor use
