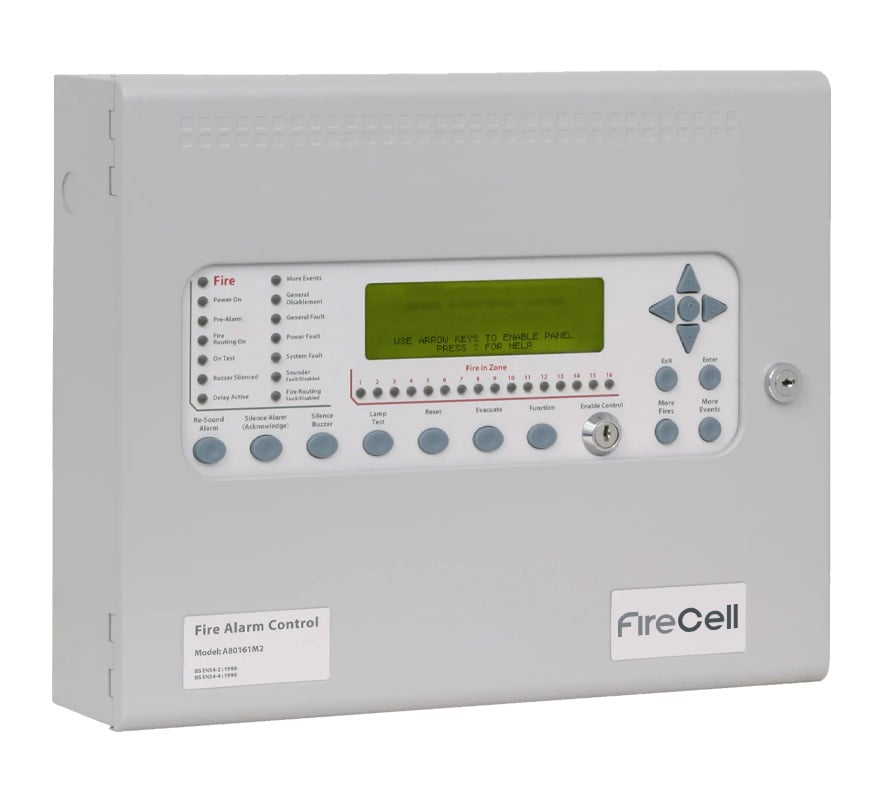

EMS FireCell Syncro AS Lite 1 Loop 16 Zone Addressable Fire Panel (FC-LA80161M2)

The EMS FireCell Syncro AS Lite (FC-LA80161M2) is a 1 loop, 16 zone open protocol addressable fire control panel for smaller sites. It is compatible with the EMS FireCell wireless system, including the Fusion RLM, and can host up to 126 wireless FireCell devices on its loop.

Unlike the standard Syncro AS, the Lite version is not expandable and is not included in the Syncro AS network options. It is surface mounted, supplied with an enable keyswitch and excludes standby batteries.

Key features

• 1 detection loop, 16 zones with zonal LED indicators
• Up to 126 wireless FireCell devices per loop
• Stores the last 500 events in the event log
• Powerful and versatile cause and effect programming
• Programmable inputs, relays and sounder circuits
• Integrated power supply
• Third-party EN certified
• Not expandable

Technical specifications

• Part number: FC-LA80161M2 (Syncro AS Lite, 1 loop 16 zone)
• Enclosure: steel, 1.2 mm BMT, RAL 9001 cream
• IP rating: IP30, indoor use only
• Dimensions (W x H x D): 385 x 310 x 90 mm
• Weight: 6 kg (standard panel)
• Mains supply: 230 VAC; mains fuse 1.6 A
• PSU DC rating: 24 VDC 3 A
• Standby batteries: 2 x 12 V lead acid (not included; see EMS document MK153 for sizing)
• Detection loop: 400 mA, XP95 protocol
• Auxiliary 24 VDC output: fused at 500 mA
• Fire, fault and alarm contacts: volt-free, 1 A at 30 VDC
• 2 x programmable relays: volt-free, 1 A at 30 VDC
• 4 x sounder circuits: each fused at 1 A (total load 2 A)
• Remote inputs (switched -ve): silence, fault, reset, alert and evacuate
• Serial ports: RS232, 9-pin D-type
• Configuration: Loop Explorer software, download via FC-000-KEN programming lead
• Approvals: EN54-2 and EN54-4 (KM 73505)
