EMS FireCell Universal 6V PSU for Radio Cluster Communicator (RCC) (FC-60-1000)
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 2 | Next working day |
| UK Hub | 0 | None at UK Hub |
- Designed to fit within the FireCell RCC; also used to upgrade RCCs with a previous version of PSU (a small housing modification is needed)
- Status, fault, mains/charger fail, battery low and battery fail LEDs
- START button lets the PSU run from its 6V battery in power-save mode in an emergency, when mains is not present
- Battery charging with thermistor temperature sensing
- No user-serviceable parts
- Certified to EN 54-4 (0359-CPR-00267)
Frequently bought together
Product details

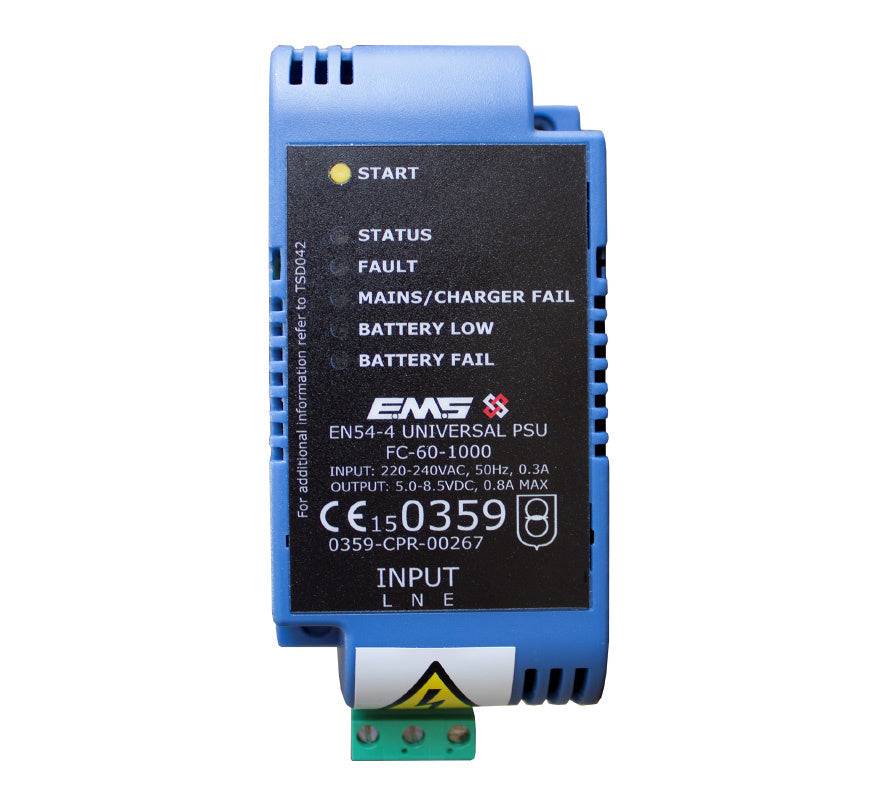

The EMS FC-60-1000 is the replacement 6V power supply for the mains-powered FireCell Radio Cluster Communicator (RCC).
The EMS FC-60-1000 is the Universal PSU (FireCell variant), a 6V power supply designed to be fitted inside the mains-powered FireCell Radio Cluster Communicator (RCC). It is certified to EN 54-4 and can be fitted in two orientations, allowing mains entry from the left or right of the RCC housing.
Key features
- Designed to fit within the FireCell RCC; also used to upgrade RCCs with a previous version of PSU (a small housing modification is needed)
- Status, fault, mains/charger fail, battery low and battery fail LEDs
- START button lets the PSU run from its 6V battery in power-save mode in an emergency, when mains is not present
- Battery charging with thermistor temperature sensing
- No user-serviceable parts
- Certified to EN 54-4 (0359-CPR-00267)
Technical specifications
- Part number: FC-60-1000
- Mains input: 220 to 240V AC, 50Hz, 0.3A
- Output current: Imin 0.0A, Imax a 0.8A, Imax b 0.8A
- Current consumption (when connected to RCC): 44mA normal operation, 55.5mA with mains disconnected
- Fuses: Input T3.15A (non-replaceable); output 300mA and 750mA max. resettable
- Battery: 1 x 6V 4Ah Yuasa NP4-6 (fitted in the RCC)
- Battery standby: 72 hours; typical 5-year battery life (replace every 3 years if 72 hours standby is required)
- Battery low indication: Below 5.7V
- Operating temperature: -10 to +55°C
- Dimensions (W x H x D): 53 x 110 x 9mm
- Weight: 150g
- Location: Type A, indoor use
- Standard: EN 54-4
Used for: servicing and upgrading EMS FireCell wireless fire alarm systems.
Frequently asked questions
Which unit does the FC-60-1000 fit?
It is designed to be fitted inside the mains-powered FireCell Radio Cluster Communicator (RCC). It can also upgrade RCCs with a previous PSU version, which needs a small housing modification.
What battery does it use?
1 x 6V 4Ah Yuasa NP4-6, fitted in the RCC, giving 72 hours standby.
Is it EN 54-4 certified?
Yes, it is certified to EN 54-4 (0359-CPR-00267).
Datasheet
EMS FireCell Universal 6V PSU for Radio Cluster Communicator (RCC) (FC-60-1000) Need the datasheet? Our team will email it to you. Request datasheet
