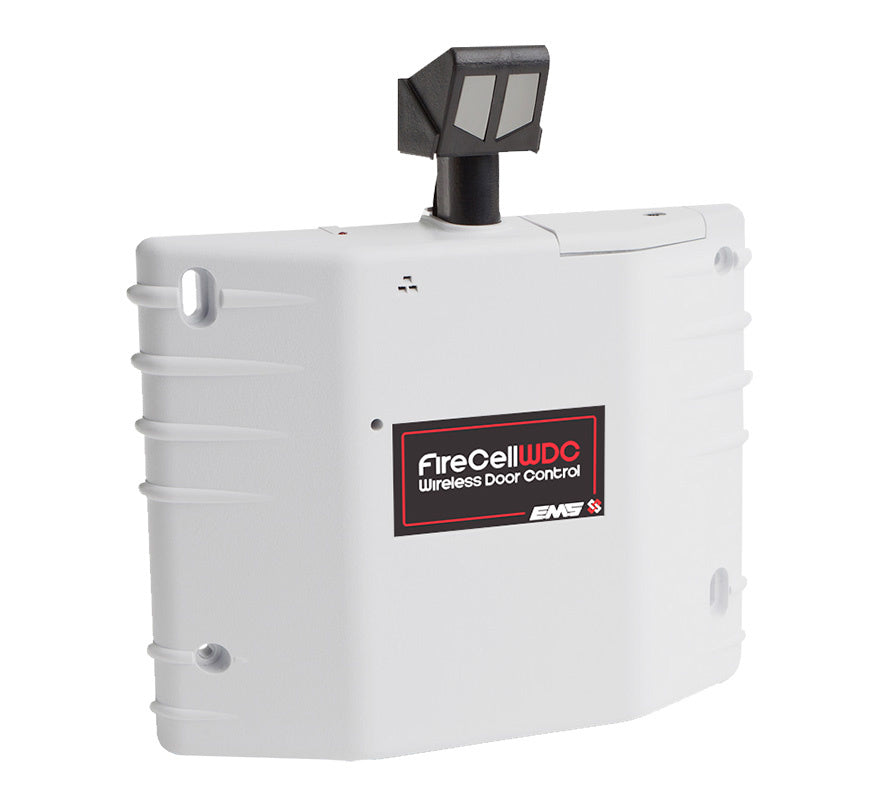

EMS FireCell Wireless Door Control (White) (FC-60-2010)

The EMS FireCell Wireless Door Control (WDC) in white (FC-60-2010) holds heavy fire doors open to improve building ventilation and automatically releases them to close in the event of a fire. It combines proven door-holding mechanics with FireCell wireless operation, so no cabling is needed back to the fire system.

The WDC is fully integrated with the FireCell system, including the Fusion RLM, providing full health monitoring and individual testing of each device. It can also be included in phased evacuation plans through system cause and effect programming.

Key features

• Holds fire doors open and releases them on a fire signal
• Full FireCell wireless integration with health monitoring
• Each device can be tested individually
• Can be included in phased evacuation plans via cause and effect
• Battery powered, no hardwiring to the fire system
• Third-party EN approved

Technical specifications

• Part number: FC-60-2010 (white)
• Power supply: 2 x C alkaline batteries
• Operating frequency: 868 MHz
• Output transmitter power: 0 to 14 dBm (auto adjusting)
• Radio range: up to 1250 m (clear line of sight)
• Signalling protocol: X
• Maximum hold-open power size: 7
• Maximum door leaf width: 1600 mm
• Maximum door weight: 160 kg
• Operating temperature: -10 to +55 °C; storage 5 to 30 °C
• Dimensions (W x H x D): 195 x 205 x 45 mm
• Weight: 0.5 kg
• Approvals: EN54-25, EN 1155 and BS 7273-4 (category B)
