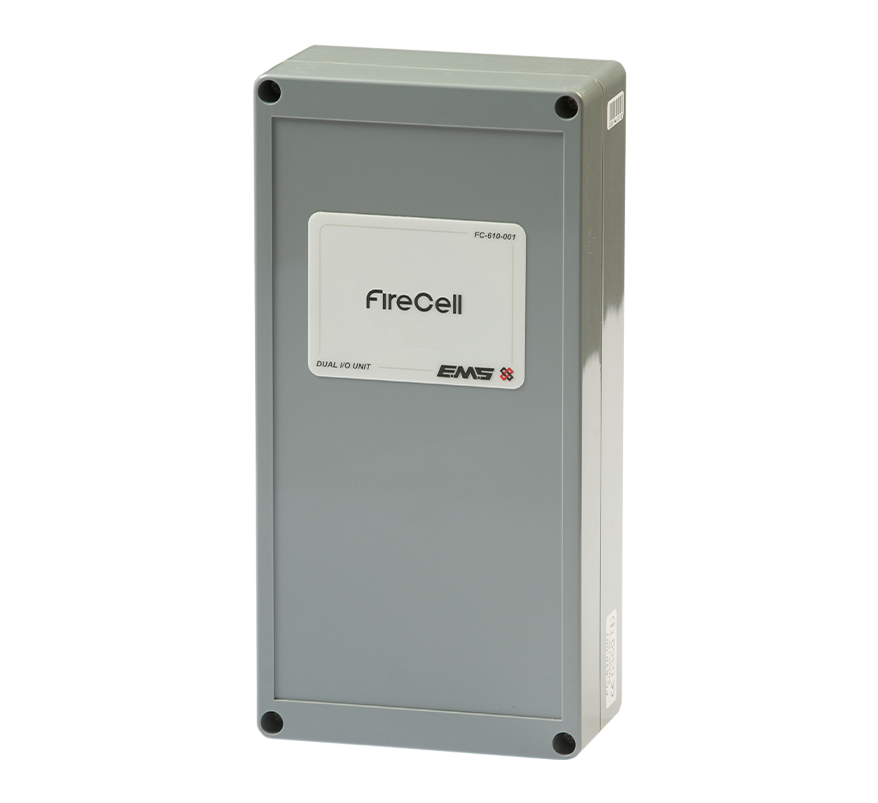

EMS FireCell Wireless Dual Input / Output Unit (FC-610-001)

The EMS FireCell Wireless Dual Input / Output Unit (FC-610-001) adds two supervised inputs and two voltage-free outputs to a FireCell wireless fire system while using only one address on the system. It is individually addressed at the fire control panel and is compatible with the EMS FireCell system, including the Fusion RLM.

An optional 230 VAC switching auxiliary relay module (FC-620-001) is available for use with this unit.

Key features

• 2 x supervised inputs
• 2 x voltage-free outputs rated 2 A at 24 V
• Uses only one address on the system
• Dual-band 868 MHz operation
• Battery powered, quick and easy to install
• Optional 230 VAC switching auxiliary relay module (FC-620-001)
• Third-party EN certified

Technical specifications

• Part number: FC-610-001 (Dual I/O Unit)
• Outputs: 2 x 2 A at 24 VDC
• Power supply: 6 x AA alkaline (Panasonic LR6AD Powerline / Varta 4006 Industrial)
• Operating frequency: 868 MHz
• Output transmitter power: 0 to 14 dBm (auto adjusting)
• Radio range: up to 1250 m (clear line of sight)
• Signalling protocol: X
• Operating temperature: -10 to +55 °C
• IP rating: IP65, indoor use only
• Dimensions (W x H x D): 120 x 240 x 60 mm
• Weight: 0.95 kg
• Approvals: EN54-18 and EN54-25 (CPR 0359-CPR-0039)
