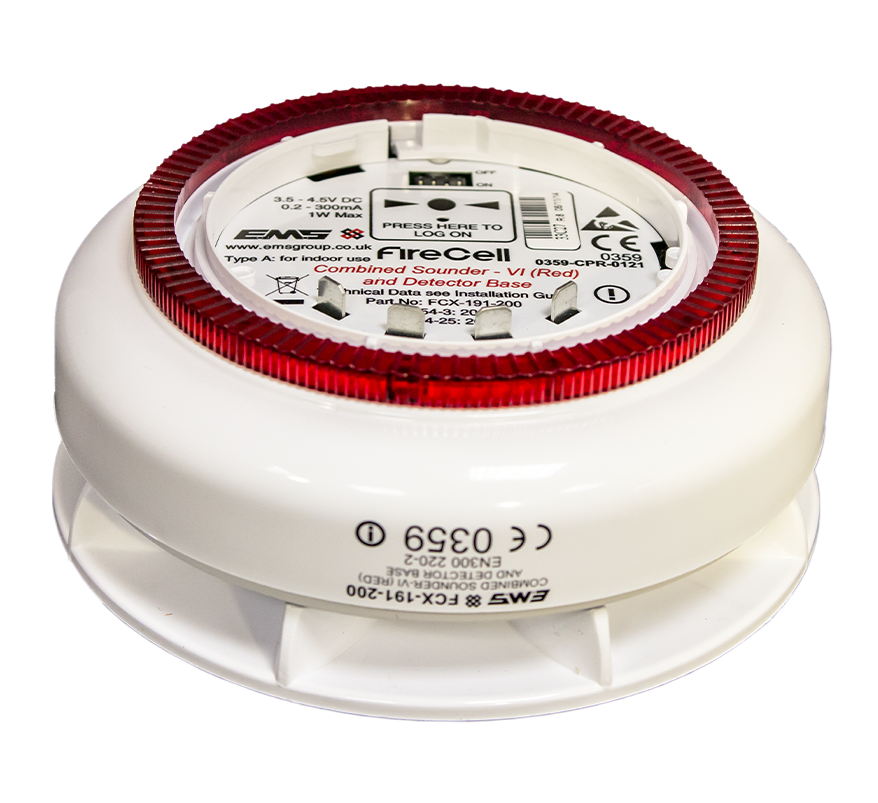

The EMS FireCell FCX-191-200 is the wireless combined sounder/detector base with integrated red visual indicator for the FireCell wireless fire alarm system. Fitted with one of the FireCell detector heads, it creates a single wireless device that detects fire, sounds the alarm and gives a visual warning, individually addressed at the fire control panel.
Key features
- Integrated red visual indicator
- Accepts interchangeable FireCell detector heads: multisensor (FCX-174-001), A1R heat (FCX-175-001), CS heat (FCX-176-001) or optical smoke (FCX-177-001)
- Dual band 868MHz radio with auto-adjusting power output
- 32 selectable sounder tones (9 approved to EN 54-3) with volume control
- Integrated audio monitoring
- Individual addressing at the fire control panel
- Anti-tamper locking mechanism and FasTest detector maintenance feature
- Sounder switches off after a maximum of 30 minutes of activation to conserve battery life
- Compatible with the EMS FireCell system, including the Fusion RLM
- Note: supplied as the base only; detector head sold separately
Technical specifications
-
Part number: FCX-191-200 (sounder/detector/red visual indicator base only)
-
Frequency: 868MHz, dual band
-
Radio range: Up to 1,250m (clear line of sight)
-
Output power: 0 to 14dBm (auto adjusting)
-
Signalling protocol: X
-
Batteries: 3 x AA alkaline and 3 x C alkaline (Panasonic Powerline / Varta Industrial)
-
Sound output: Up to 99.5dB(A) at 1m as dispatched; low setting typically 10dB lower
-
Dimensions (with multisensor detector): 146mm diameter x 100mm depth
-
Weight: 0.7kg
-
Operating temperature: -10°C to 55°C
-
Ingress protection: IP23, indoor use only
