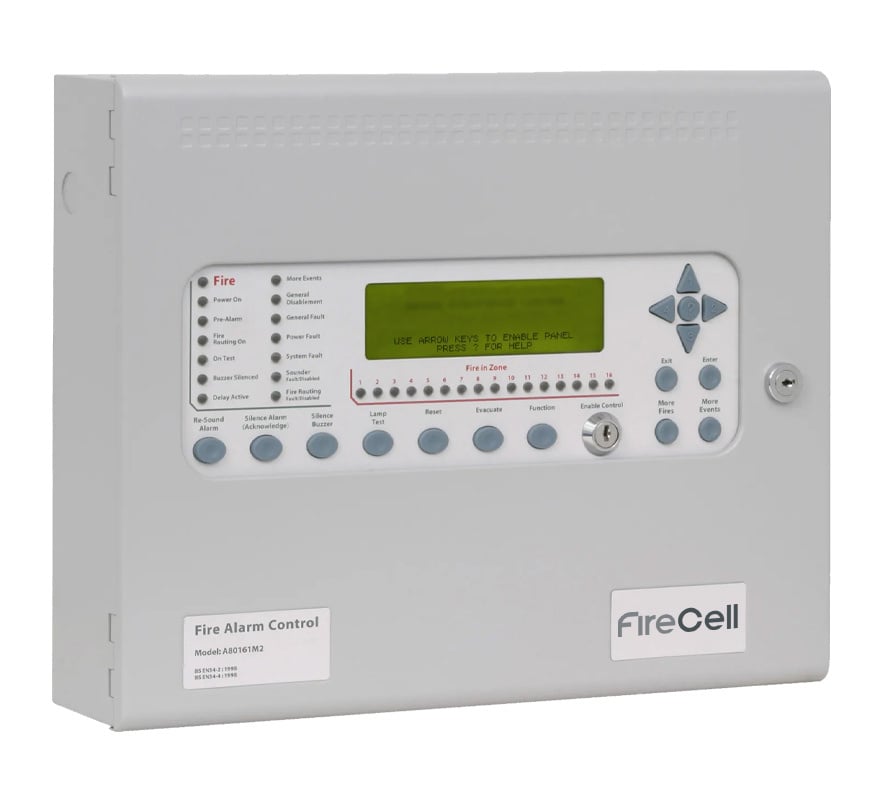

EMS FireCell Syncro AS 2 Loop 16 Zone Addressable Fire Panel (FC-A80162M2)

The EMS FireCell Syncro AS 2 Loop, 16 Zone addressable fire control panel (FC-A80162M2) is an open protocol, microprocessor-based panel for FireCell wireless and hybrid fire systems. It uses the XP95 protocol and supports up to 126 wireless FireCell devices per loop, with a potential mix of 252 wireless FireCell and hardwired field devices per panel.

It can be expanded into larger systems with an optional RS485 network card (up to 64 panels) or radio networking via network card and Radio Network Communicators (up to 16 panels). It is surface mounted, supplied with an enable keyswitch, and excludes standby batteries.

Key features

• Two detection loops, 16 zonal LED indicators
• Up to 126 wireless FireCell devices per loop
• Stores the last 500 events in the event log
• Powerful and versatile cause and effect programming
• Programmable inputs, relays and sounder circuits
• Integrated power supply
• Configuration via Loop Explorer software
• Third party EN certified

Technical specifications

• Part number: FC-A80162M2 (Syncro AS, 2 loop, 16 zone)
• Loop protocol: XP95
• Enclosure: steel, 1.2 mm BMT, RAL 9001 cream; IP30 indoor use only
• Dimensions (W x H x D): 385 x 310 x 90 mm
• Weight: 6 kg (standard panel)
• Mains supply: 230 VAC; mains fuse 1.6 A
• PSU rating: 24 VDC 3 A
• Batteries: 2 x 12 V lead acid (not included; see EMS current consumption document MK153 for sizing)
• Detection circuits: 400 mA each
• Aux 24 VDC output fused at 500 mA
• Fire, fault and alarm contacts: volt-free, 1 A at 30 VDC
• 2 x programmable relays: volt-free, 1 A at 30 VDC
• 4 x sounder circuits, each fused at 1 A (total load 2 A)
• Remote inputs: silence, fault, reset, alert and evacuate (switched -ve)
• Serial: 2 x RS232 9-pin D-type
• Networking: RS485 up to 64 panels via optional network card; radio up to 16 panels via network card and RNCs
• Approvals: EN54-2 and EN54-4 (KM 73505)
