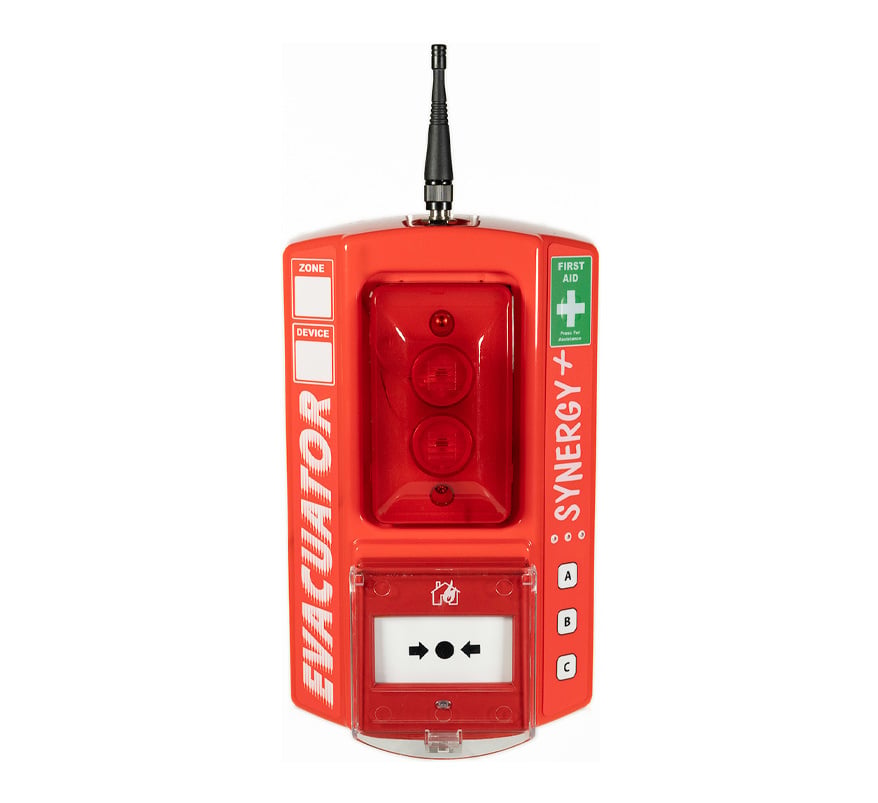

The Evacuator Synergy+ Call Point with First Aid (FMCEVASYNP5) is a wireless, battery-powered call point site alarm for temporary fire alarm systems on construction sites and other temporary installations. It works within the Synergy+ wireless system, which links up to 250 devices over a secure mesh radio network.
When the fire button is pressed it sounds a 100 dB siren with a strobe across the linked devices. A separate First Aid button alerts designated first aiders without sounding the fire alarm or strobes on other devices. Alarms can be reset locally or from the Synergy+ base station.
Key features
- Combined sounder and strobe with EN 54 compliant call point
- Dedicated First Aid call function
- Totally wire-free operation with mesh radio connectivity
- Category One radio module, 869 MHz
- Up to 2 km line-of-sight range
- Up to 3 years battery life, with battery low indication
- Secure reset function and status LED
- Anti-tamper antenna and hinged call point cover
- CE, UKCA, RoHS and EMC compliant
Technical specifications
- Product code: FMCEVASYNP5
- System: Evacuator Synergy+ (not compatible with Synergy RF devices)
- Radio frequency: 869 MHz
- Range: up to 2 km line of sight
- Sound output: 100 dB at 1 m
- Power source: battery pack (FMCEVAWBPACK4)
- IP rating: IP55
- Dimensions: H 350 x W 163 x D 98 mm
- Weight: 1.65 kg
What's in the box
- Battery pack
- Call point reset key
- Mounting gasket and call point gasket
