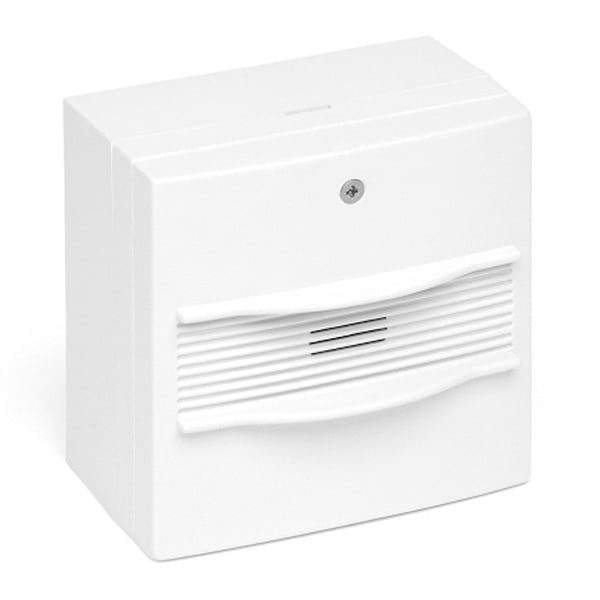

Fike Sita Addressable Sound Point Sounder (White) (313-0002)

The Fike Sita Soundpoint (313-0002) is a white addressable wall sounder for Fike Duonet, Quadnet and CIE-A-200/400 addressable fire systems.

It gives audible warning when the system goes into alarm and connects directly to the addressable loop.

Key features

• Addressable sounder that connects directly to the loop, with built-in short circuit isolator
• 7 sound patterns (SP1 to SP7) plus sounder off (SP0), including UK alert, UK evacuate and French warble, with low, medium and high volume, configured with the panel OSP software
• Soft addressed: address allocated automatically by the control panel during initialisation
• Surface back box supplied; flush mounting on a standard single-gang box with the flush adaptor plate
• Also available in red (313-0001)

Technical specifications

• Part number: 313-0002 (Sita Soundpoint, white)
• Standards: EN 54-3, EN 54-17
• Dimensions: 89 x 89 mm; depth 62 mm surface, 34 mm flush (flush box minimum depth 47 mm)
• Sound output at 1 m (dual tone): low 65+ dB(A), medium 88 dB(A), high 92 dB(A)
• Voltage range (loop): 24 to 42 V DC
• Loop current: quiescent 0.17 mA; alarm low / medium / high 1.74 / 3.86 / 5.39 mA
• DLU rating: 1.5 (off), 2 / 4 / 5.5 (low / medium / high)
• Operating temperature: -10°C to +50°C
• IP rating: IP21C
• Flammability: UL94-V2
• System compatibility: Duonet and Quadnet V1 onwards; CIE-A-200 V1 onwards
• Cable: 2-core 1.5 mm² screened fire-resistant, wired as a loop (no spurs)

What's in the box

• Sita Soundpoint sounder
• Back box
• Flush adaptor plate
