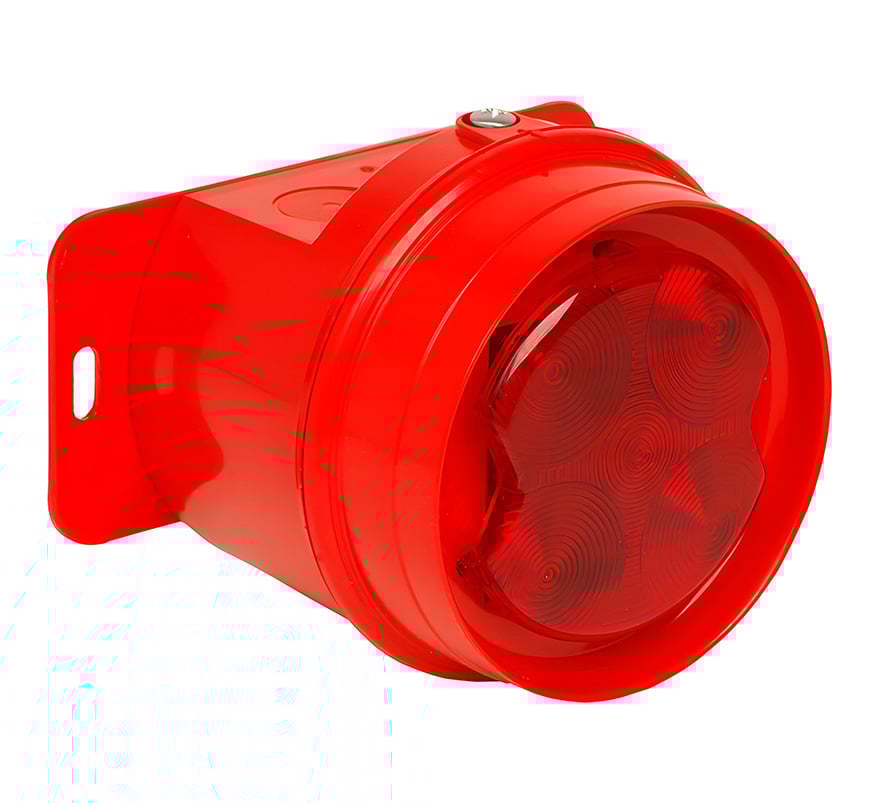

Fike Sita Addressable Weatherproof Beacon (326-0015-R)

The Fike Sita 326-0015-R is an IP65 weatherproof addressable strobe (visual indication beacon) for Fike Sita, Duonet, Quadnet and CIE-A-200/400 addressable fire systems.

It gives visual warning when the system goes into alarm and connects directly to the addressable loop. It does not include a sounder.

Key features

• Addressable LED beacon made up of high-output LEDs, with built-in short circuit isolator
• Activates on command from the panel; sound pattern SP0 is selected in the configuration software
• Soft addressed: address allocated automatically by the control panel during initialisation
• Red mounting base and red lens; wall-mount bracket and cable glands supplied
• Locking screw helps prevent unauthorised removal from the base
• Mount with cable entry from the underside

Technical specifications

• Part number: 326-0015-R (Sita Weatherproof Strobe)
• Diameter: 97 mm
• Depth including deep base: 83 mm
• Voltage range (loop): 24 to 42 V DC
• Loop current: quiescent 0.18 mA; active 9.00 mA
• DLU rating: 9
• Operating temperature: -10°C to +50°C
• IP rating: IP65
• Flammability: UL94-V2
• System compatibility: Sita 200 plus V2.30 onwards; Duonet and Quadnet V1 onwards; CIE-A-200 and CIE-A-400 V1 onwards
• Cable: 2-core 1.5 mm² screened fire-resistant, wired as a loop (no spurs)
