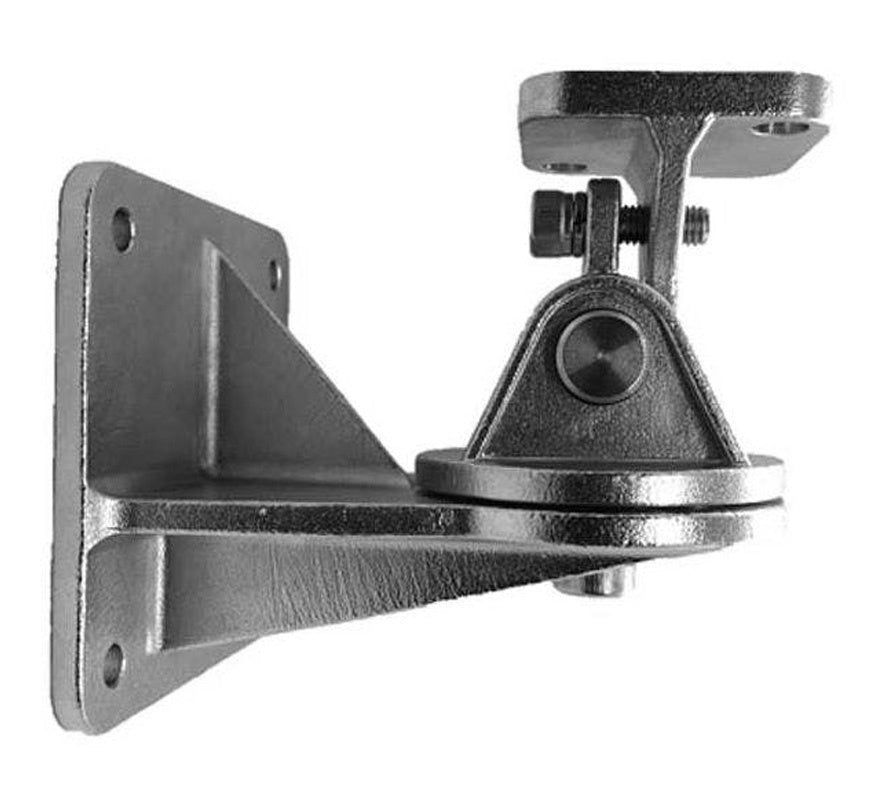

The Fike FIK-TMO-S02 is a stainless steel tilt mount for Fike's larger HD (high-definition video) optical flame detectors, including the IR3-HD, IR3-H2-HD, UV-IR-HD and UV-IR-F-HD models.
It lets the detector be aimed at the protected area, and the bracket can be fitted either above or below the detector. It is ordered separately from the detector.
Key features
- Stainless steel tilt mount for Fike HD flame detectors
- Can be connected either above or below the detector
- Sized for the 200 x 130 x 130 mm HD detector housing
- For standard (non-HD) detectors use the smaller FIK-TMO-S01 tilt mount
Technical specifications
- Part number: FIK-TMO-S02 (tilt mount, stainless steel)
- Material: stainless steel
- Weight: 2.4 kg
- Compatible detectors: FIK-IR3-HD, FIK-IR3-H2-HD, FIK-UV-IR-HD and FIK-UV-IR-F-HD series
