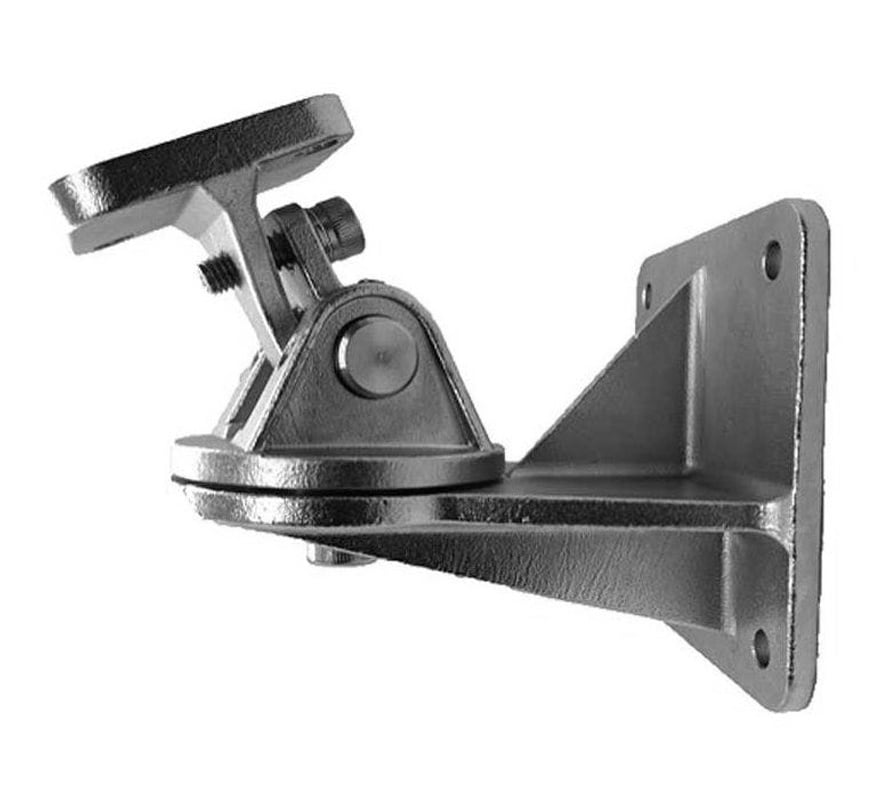

The Fike FIK-TMO-S01 is a stainless steel tilt mount for Fike's standard-size (non-HD) optical flame detectors, including the IR3, IR3-H2, UV-IR and UV-IR-F models.
It lets the detector be aimed at the protected area, and the bracket can be fitted either above or below the detector. It is ordered separately from the detector.
Key features
- Stainless steel tilt mount for Fike non-HD flame detectors
- Can be connected either above or below the detector
- Used with the 140 x 90 x 90 mm detector housing of the IR3, IR3-H2, UV-IR and UV-IR-F models
- For HD (video) detectors use the larger FIK-TMO-S02 tilt mount
Technical specifications
- Part number: FIK-TMO-S01 (tilt mount, stainless steel)
- Material: stainless steel 316
- Weight: 1.5 kg
- Compatible detectors: FIK-IR3, FIK-IR3-H2, FIK-UV-IR and FIK-UV-IR-F series (M25 and 3/4" NPT versions)
