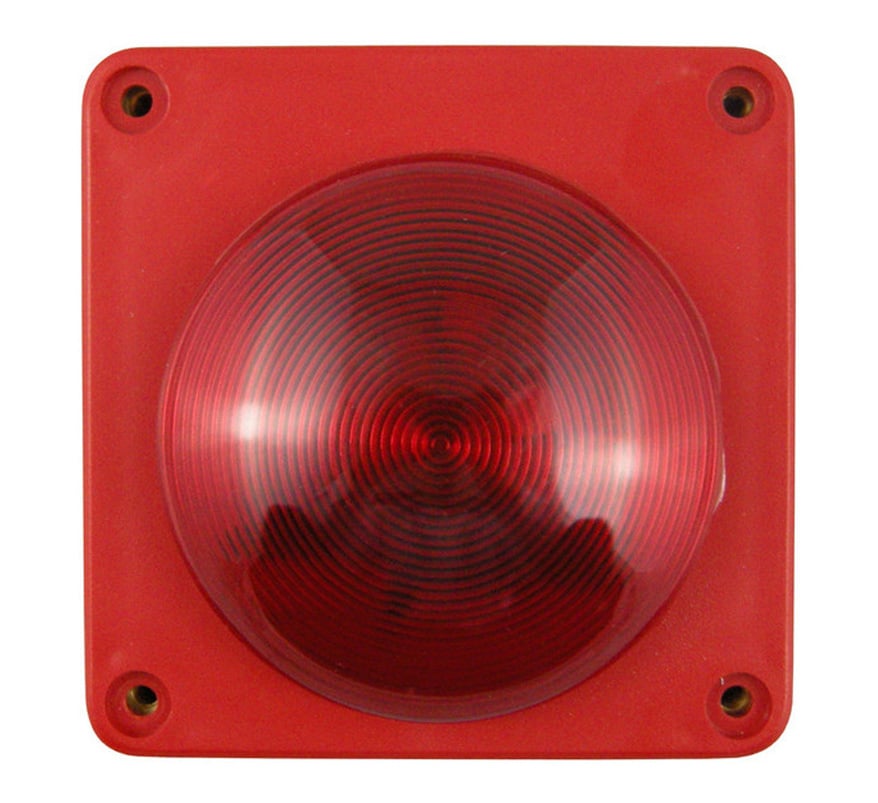

The Fike Twinflex Flashpoint Weatherproof (302-0023) is a 2-wire, zone-powered LED visual indication beacon for Fike Twinflex fire alarm systems.
It can be installed on the same zone as Twinflex multipoint detectors, sounders and other Twinflex devices, and provides visual indication when the system goes into alarm.
Key features
- Zone-powered LED beacon for Twinflex 2-wire systems
- Mixes on the same zone as other Twinflex devices
- Built-in end-of-line function, enabled by DIL switch on the last device
- IP55 weatherproof housing; use suitable cable glands to maintain the rating
- Front unit fixed to the back box with four screws
Technical specifications
- Part number: 302-0023
- Dimensions (W x H x D): 115 x 115 x 70 mm
- Operating temperature: -10°C to +50°C
- Voltage: 25.5 to 35 V DC (mains-powered panel); 20 to 26 V DC (battery-powered panel)
- Current: quiescent 428 µA typical; beacon 5 mA
- Loading: 2.7 SLU (V3 panel) / 16 DLU (Pro/Pro² panel)
- Beacon: 15 ms flash every 1 s
- IP rating: IP55
- Flammability: UL94-V2
- Cable: 2-core 1.5 mm² screened fire-resistant, radial circuit
